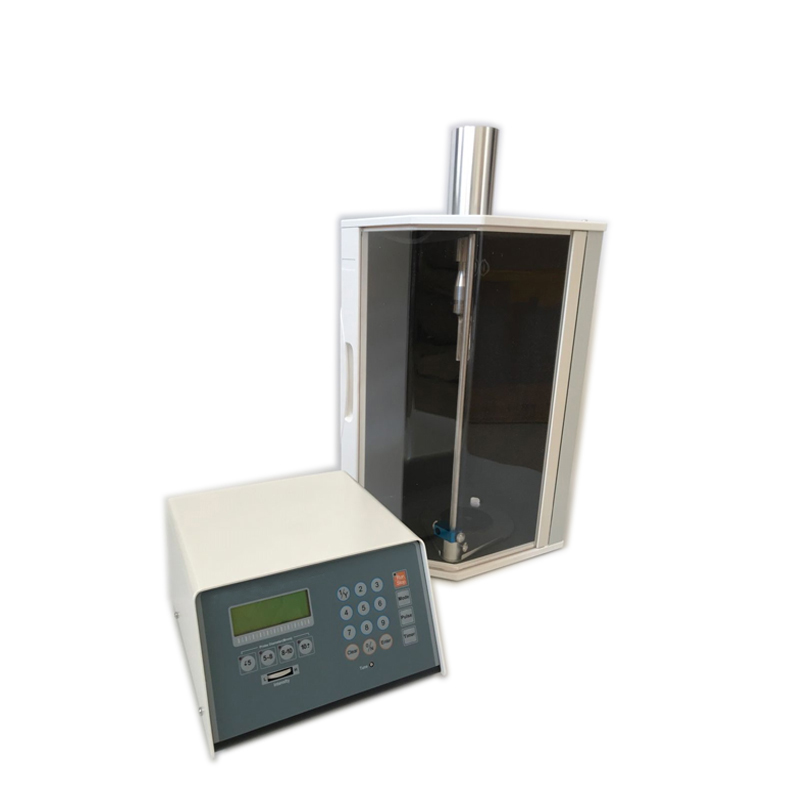

instrument Ultrasonic Homogenizer and ultrasonic emulsification device probe
Ultrasonic cell crusher is to use the dispersion effect of ultrasonic in liquid to make the liquid produce cavitation, so as to break the solid particles or cell tissue in the liquid. The ultrasonic cell grinder is composed of ultrasonic generator and transducer. The ultrasonic generator transforms the mains power into 18-21khz alternating power supply transducer. Barium zirconate titanate piezoelectric vibrator is the heart of transducer. It makes elastic deformation with alternating voltage at frequency of 18-21khz, and the transducer vibrates longitudinally. The vibration wave generates cavitation effect through the titanium alloy horn immersed in biological solution, which excites the violent vibration of biological particles in the medium.
| Type | Power (w) | Output Amplitude | Available Converter |
| PU-100UP | 100 | 1/8″3/16″1/4″ | 100ul～80ml 1%～99% |
| PU-150UP | 150 | 1/8″3/16″1/4″ | 100ul～100ml 1%～99% |
| PU-250UP | 250 | 1/8″3/16″1/4″ | 100ul～200ml 1%～99% |
| PU-500UP | 500 | 1/8″3/16″1/4″1/2″ | 250ul～500ml 1%～99% |
| PU-800UP | 800 | 1/8″3/16″1/4″1/2″3/4″ | 250ul～800ml 1%～99% |
TAG ultrasonic： Ultrasound Nano Material Dispersion Instrument Ultrasonic Touch Screen Ultrasonic Homogenizer Sonicator Homogenizer Ultrasonic Cell Disruptor For Emulsification
