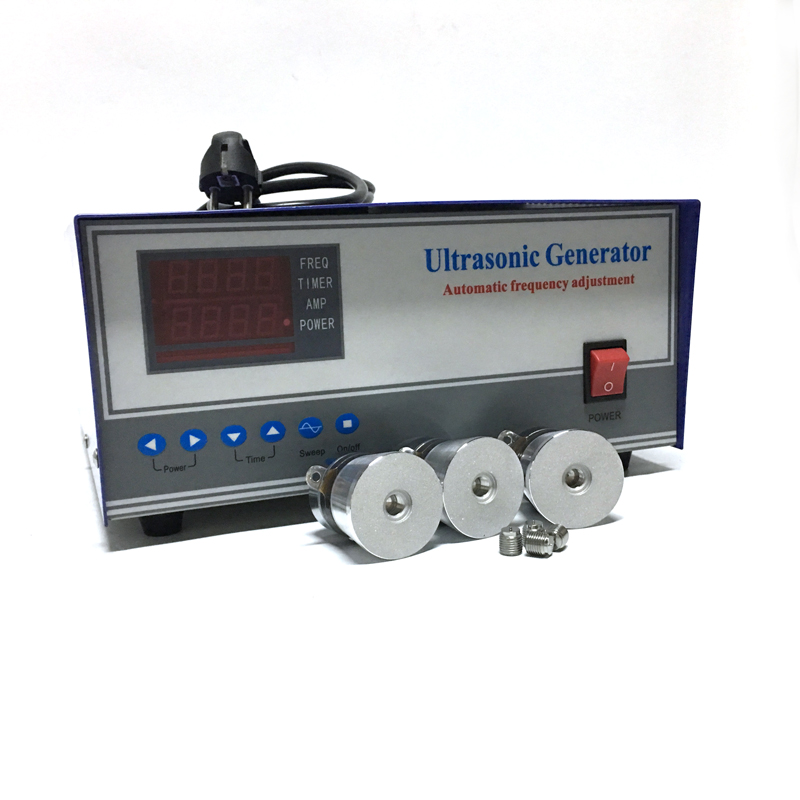

high frequency ultrasonic generator for industrial cleaning

Supporting equipment: ultrasonic cleaning machine, ultrasonic vibration plate, ultrasonic dishwasher, ultrasonic vibration screen, ultrasonic vibration rod, all equipment of ultrasonic cleaning industry.

Scope of application: all kinds of hardware, stainless steel products, ceramic sanitary ware, fiber-optic ceramics, optical lens, mobile phone glass lens, electroplating plant cleaning, dishwashing, precision hardware, LED industry, abrasives, engines, bearings, chemical extraction and refining, stirring, etc.

Digital Ultrasonic Generator mode: Fuji IGBT (2mbi150va-060-50600v) module drive; 150A super large load, high voltage and current resistance; reliable performance; low failure rate; stable output.

Frequency range of ultrasonic generator: 25kHz ~ 40KHz.

Power range: automatic frequency sweep function. 10% - 100% stepless adjustable within the allowable power range.

Power control: the thyristor of Japan's third society is used for power regulation, with stable performance.

Internal structure: unique anti-corrosion design, not affected by the working environment, suitable for all kinds of working sites.

Protection mode: vibrator short circuit protection, leakage protection and other functions. The advanced circuit, complete structure and sensitive and reliable integrated control system ensure the stable operation of ultrasonic cleaning machine under various loads. The generator is small in size, novel in appearance, and easy to operate. The quality and technical level of the generator are comparable to those of the same kind of foreign products. Once launched, it has been paid attention to by peers and welcomed by the majority of users. All kinds of ultrasonic generators can work independently or in parallel, so as to complete large-scale cleaning project. The maintenance is simple. The cooling fan is installed in the cabinet to ensure the safety of long-term work. ,

Type	Power（W）	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PU-GT300	300W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PU-GT600	600W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PU-GT900	900W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PU-GT1000	1000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PU-GT1200	1200W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PU-GT1500	1500W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PU-GT1800	1800W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PU-GT2000	2000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PU-GT2400	2400W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PU-GT3000	3000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	65-80khz
High Frequency	300W-1200W	120-135khz

TAG ultrasonic： Digital Generator High Frequency Ultrasonic Power Supply 80khz high frequency generator in ultrasonic cleaning generator High Efficiency Ultrasonic Frequency Generator

high frequency ultrasonic generator for industrial cleaning
