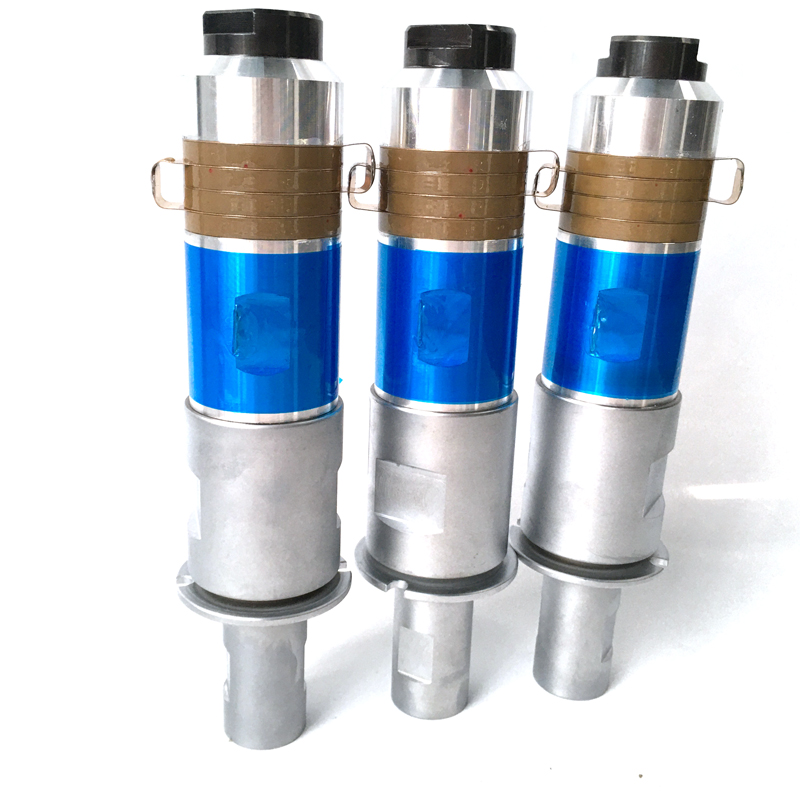

Piezoelectric Ultrasonic Welding Transducer Disposable Medical Mask

Standard ultrasonic welding machine, non-woven fabric standard mask machine, 20KHz 1200w-2000w, 15KHz 2600w-4200w ultrasonic welding machine, non-woven fabric welding, plastic welding, welding, PVC skin spot welding, ribbon cutting, heat sealing and other multi-functional welding equipment. The outer ear band mask machine fuses elastic band to the two sides of the mask body in ultrasonic mode, and then completes the ear band mask product, only one Five operators put the mask body piece by piece on the conveyor belt fixture. The rest of the follow-up actions to the finished product are automatically operated by the machine. The output of this machine is higher than that of ordinary ear belt machine.

Plane mask machine, automatic mask spot welder, ultrasonic mask machine, plane mask spot welder, disposable mask machine, non-woven fabric mask machine, ear band mask machine, N95 mask machine, FFP2 mask machine and other mechanical equipment need to be equipped with ultrasonic generator. The auxiliary equipment is also known as electric box and ultrasonic control box.

Main functions of ultrasonic generator:

It is used for welding and welding of non-woven mask, welding of breathing valve at the front end of cup-shaped mask, welding of nose bridge line of cup-shaped mask, spot welding of ultrasonic ear band, welding of ear band of cup-shaped mask, welding of plastic shell and plastic parts. A set of ultrasonic generator can be used in multiple functions.

Type	Full-length（mm）	Joint Bolt（mm）	Frequency（KHz）	Resonance Impedance（Ω）	Capacity（pF）	Input Power （W）
PU-UWT152500 P8	153	M20×1.5	15	15	13000	2500
PU-UWT152000 P8	167	M20×1.5	15	10	9500	2000
PU-UWT151500 P4	171	M18×1.5	15	12	12500	1500
UCE-UWT151800 P4	118	M20×1.5	20	15	15000	1800
PU-UWT202000 P8	128	M18×1	20	10	11000	2000
PU-UWT202000 P8	124	M18×1.5	20	12	10000	1500
PU-UWT20700 P8	112	1/2-20 UNF	20	15	9000	700
PU-UWT20900 P8	133	1/2-20 UNF	20	15	10000	900
PU-UWT20600 P8	121	M18×1.5	20	15	6000	600
PU-UWT30500 P8	77	M10×1.5	30	5	5500	500
PU-UWT28200 P4	92.1	M10×1	28	20	3000	200
PU-UWT28100 P8	91	M8×1	28	25	2200	100
PU-UWT28250 P8	94	1/2-20 UNF	28	20	4000	250
PU-UWT202000 P8	128	1/2-20 UNF	20	10	20000	2000
PU-UWT201500 P8	124	1/2-20 UNF	20	10	16000	1500
PU-UWT201300 P8	128	1/2-20 UNF	20	10	12500	1300
PU-UWT201500 P8	132	1/2-20 UNF	20	10	11000	1500
PU-UWT20900 P8	123	1/2-20 UNF	20	10	9500	900
PU-UWT152000 P4	171	M18×1.5	15	12	10000	2000
PU-UWT35100 P8	71	M8×1	35	25	2200	100
PU-UWT38100 P8	66	M8×1.25	38	40	1200	100
PU-UWT38200 P4	65	M8×1	38	14	3300	200
