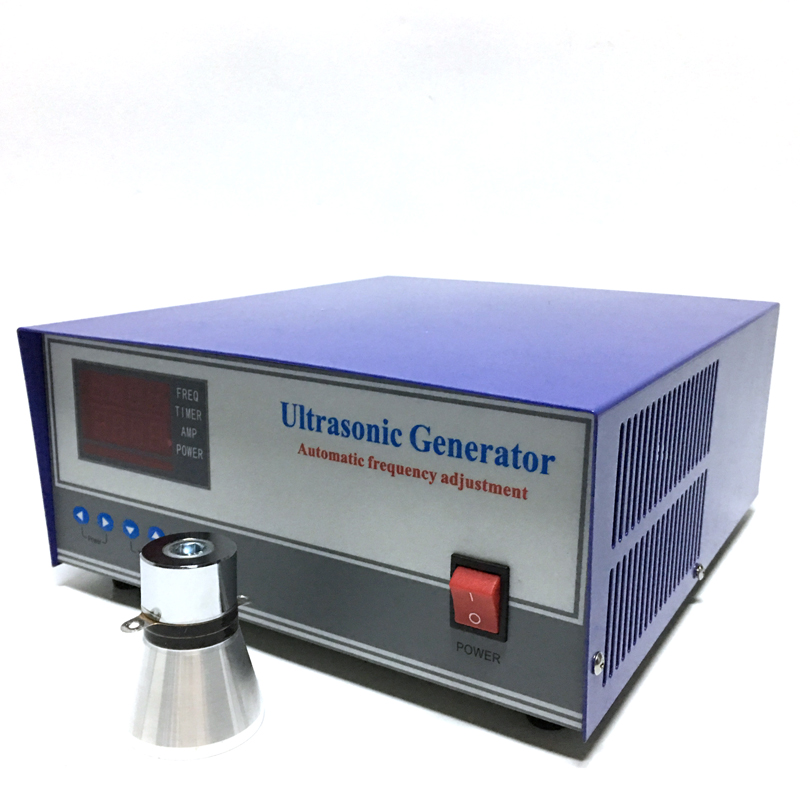

Digital Ultrasonic Power Supply for cleaner tank

The ultrasonic generator can monitor the working frequency and power of high-power ultrasonic system.

(1) Ultrasonic power supply can adjust various parameters in real time according to different requirements of users, such as power, amplitude, running time, etc.

(2) Frequency fine adjustment: adjust the frequency to make the ultrasonic transducer work in the best state all the time, the efficiency reaches the maximum, and the adjustment range is 2%.

(3) Automatic frequency following of ultrasonic generator: once the initial setting of the equipment is completed, it can work continuously without adjusting the generator.

(4) Amplitude control: when the load changes during the working process of the transducer, it can automatically adjust the driving characteristics to ensure the stable amplitude of the tool head.

(5) System protection: when the system works in an unsuitable operating environment, the generator will stop working and alarm display to protect the equipment from damage.

(6) Amplitude adjustment: the amplitude can be increased or decreased instantaneously in the working process, and the amplitude setting range is 0% ~ 100%.

Type	Power（W）	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PU-GT300	300W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PU-GT600	600W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PU-GT900	900W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PU-GT1000	1000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PU-GT1200	1200W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PU-GT1500	1500W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PU-GT1800	1800W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PU-GT2000	2000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PU-GT2400	2400W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PU-GT3000	3000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	65-80khz
High Frequency	300W-1200W	120-135khz

TAG ultrasonic： 30Khz Min Size Digital Ultrasonic Power Supply Standard Digital Ultrasonic Generator China Ultrasonic Intelligent Digital Power Supply
