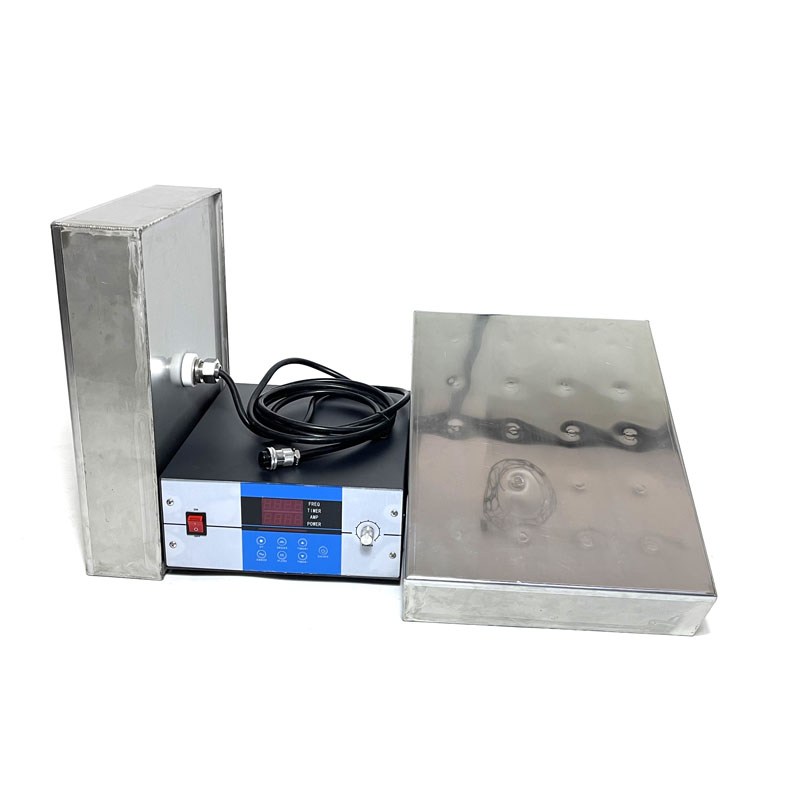

900W High Frequency Submersible Ultrasonic Cleaner Transducers Plate And Ultrasonic Generator

The ultrasonic vibration plate is a flexible installation ultrasonic cleaning device. After configuring the number and location of ultrasonic transducers, the vibration plate can achieve cleaning effects under any cleaning tank and any cleaning load.







All joints of the ultrasonic vibration plate are fully penetration welded using inert gas, which can withstand the inevitable harsh conditions in heavy industrial environments; Built-in industrial grade high-power ultrasonic transducer, which can work continuously for a long time; The ultrasonic generator is designed in a split type, and the ultrasonic power can be adjusted according to the cleaning requirements.







Vibrating plate material: 304 or 316 stainless steel (can be chrome plated) and titanium alloy materials are optional. Other special materials or coatings, please contact us.







Installation method: bottom vibration type, side vibration type, top vibration type, and installation method can be selected according to requirements.







Frequency:







1. Standard frequency: 28KHz, 40KHz







2. Non standard custom frequencies: 25KHz, 72KHz, 80KHz, 120KHz, or other frequencies.







Application range: electroplating, electrophoresis, coating, PCB, machinery, hardware and other industries.
