40khz Submersible Ultrasonic Transducer Vibration Board

Submersible Ultrasonic Transducer

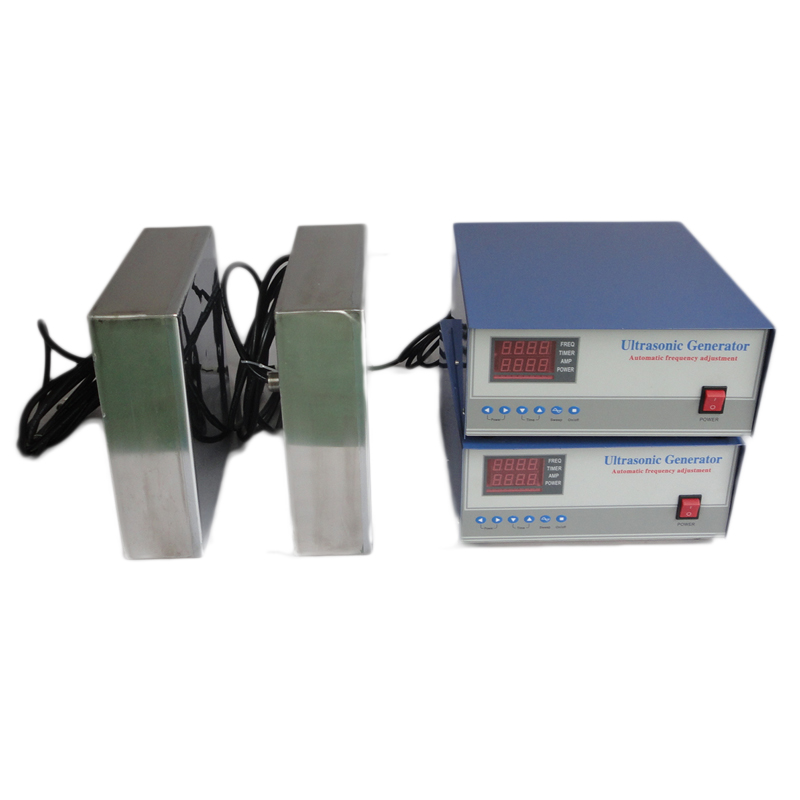

The ultrasonic vibration plate consists of two parts, ultrasonic generator and vibration plate.

Ultrasonic generator: our company cooperates with German ultrasonic experts to develop the seventh generation of German ultrasonic control technology. Its power and frequency are in the form of liquid crystal digital display, and the change of power and frequency can be observed at any time, which provides accurate basis for controlling and detecting ultrasonic wave. The generator can be free timing, can arbitrarily design the start stop mode of the generator, free timing work. The service life of the ultrasonic generator is greatly improved and the energy consumption is greatly reduced.



The ultrasonic vibration plate is installed by bottom vibration and side suspension. The bottom is fixed with screws and teflon film. The side can be directly suspended into the cylinder surface.



Customers can design and produce various types of ultrasonic vibration plate according to the size and variety of cleaning workpieces, so as to achieve the cleaning effect of oil and wax removal.

Type	Diamention(mm)	Frequency (Khz)	Power(W)	Ultrasonic Transducer
PU-UITP300W	300*190*100	25,28,33,40,80,130	300	6
PU-UITP600W	360*275*100	25,28,33,40,80,130	600	12
PU-UITP1000W	450*350*100	25,28,33,40,80,130	1000	20
PU-UITP1200W	470*380*100	25,28,33,40,80,130	1200	24
PU-UITP1500W	520*450*100	25,28,33,40,80,130	1500	30
PU-UITP1800W	560*450*100	25,28,33,40,80,130	1800	36
PU-UITP2000W	650*450*100	25,28,33,40,80,130	2000	40
PU-UITP2400W	740*520*100	25,28,33,40,80,130	2400	48
PU-UITP3000W	820*540*100	25,28,33,40,80,130	3000	60
PU-UITP5000W	1200*590*100	25,28,33,40,80,130	5000	100
OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
