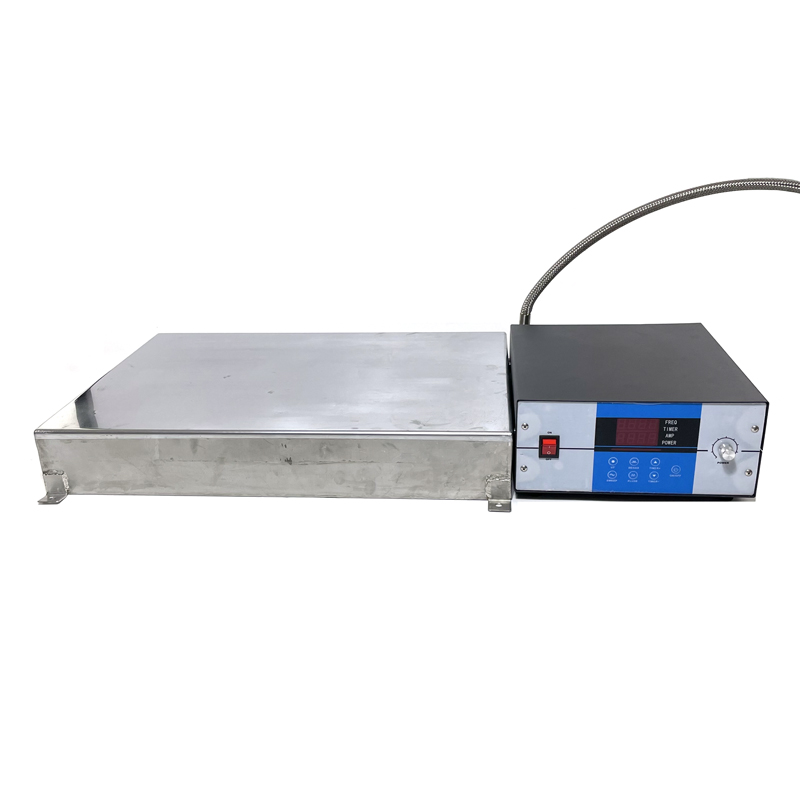

40KHZ/80KHZ/100KHZ 1000W Pulse Multifrequency Submersible Ultrasonic Cleaner And Waves Generator Box

When the standard model ultrasonic cleaning machine cannot be applied to a specific working environment, in addition to the special specification ultrasonic cleaning machine, the input ultrasonic vibration plate device can also be used, which is convenient for installation and maintenance, and can achieve single-slot high-power ultrasonic cleaning.











Layout:







The installation position can be divided into top, side and bottom to achieve different cleaning effects.











Product features:







1. Composition: mainly composed of ultrasonic transducer vibration plate and ultrasonic driving power supply







2. Ultrasonic generator: intelligent digital ultrasonic generator is adopted. The control part adopts phase-shifted zero-voltage switch control inverter technology, which has the characteristics of frequency scanning and frequency tracking, so that the control is more accurate, the circuit is simpler, and the reliability and stability of the whole machine are improved. The power can be adjusted, the time can be set, the pulse frequency can be swept, and the digital display function is provided.







3. Vibration plate material: 2.0 thick 304 stainless steel structure (optional 316L material), beautiful and durable.







4. Transducer: Piezoelectric ceramic transducer with high Q output is adopted, with stable performance and strong ultrasonic wave.







5. Bonding process: special bonding process of internal stud and imported AB glue is adopted to support long-term high-strength operation.
