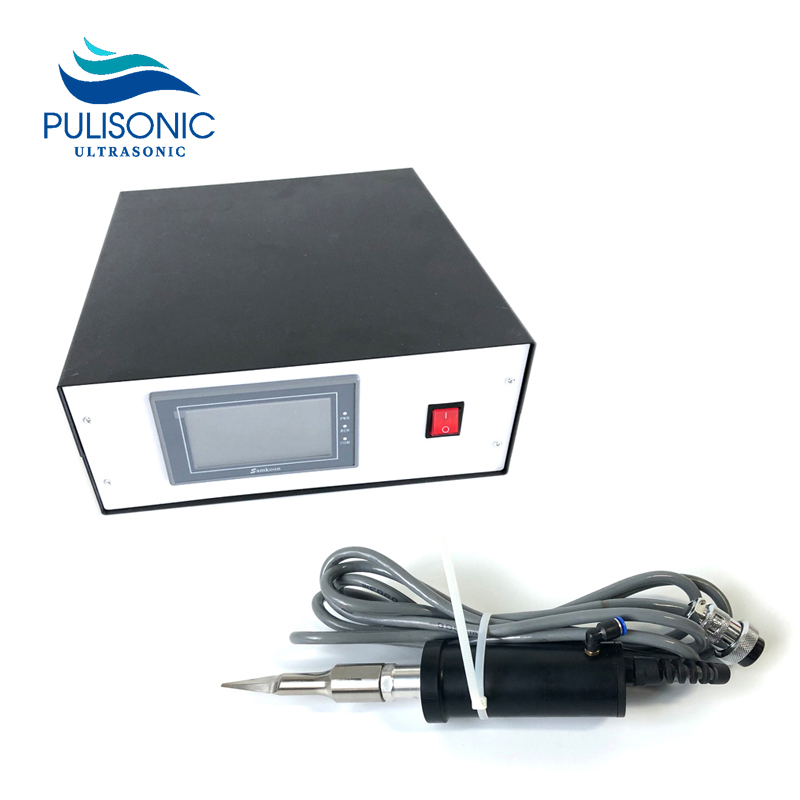

30Khz Ultrasonic Hand-Held Plastic Fabric Cutter Knife For Automata And Plotter

The ultrasonic cutting machine is basically composed of. Ultrasonic transducer, ultrasonic horn, ultrasonic cutter, ultrasonic generator.



The ultrasonic generator



The utility power is converted into high-frequency high-voltage AC current and transmitted to the ultrasonic transducer. Ultrasonic transducer is equivalent to an energy converter, which can convert the input electrical energy into mechanical energy, namely ultrasonic. The ultrasonic transducer moves back and forth in the longitudinal direction, and the frequency of the telescopic movement is equal to the frequency of the high-frequency AC current supplied by the driving power supply.



Ultrasonic horn



The ultrasonic horn amplifies the output amplitude of the ultrasonic transducer.



Ultrasonic cutter



Further amplify the amplitude and focus the ultrasonic wave.



Output the ultrasonic wave, and use the cutting knife to concentrate the ultrasonic energy into the cutting part of the material to be cut. Under the action of huge ultrasonic energy, this part immediately softens and melts, and its strength is greatly reduced. The purpose of cutting materials can be achieved with only a small force.
