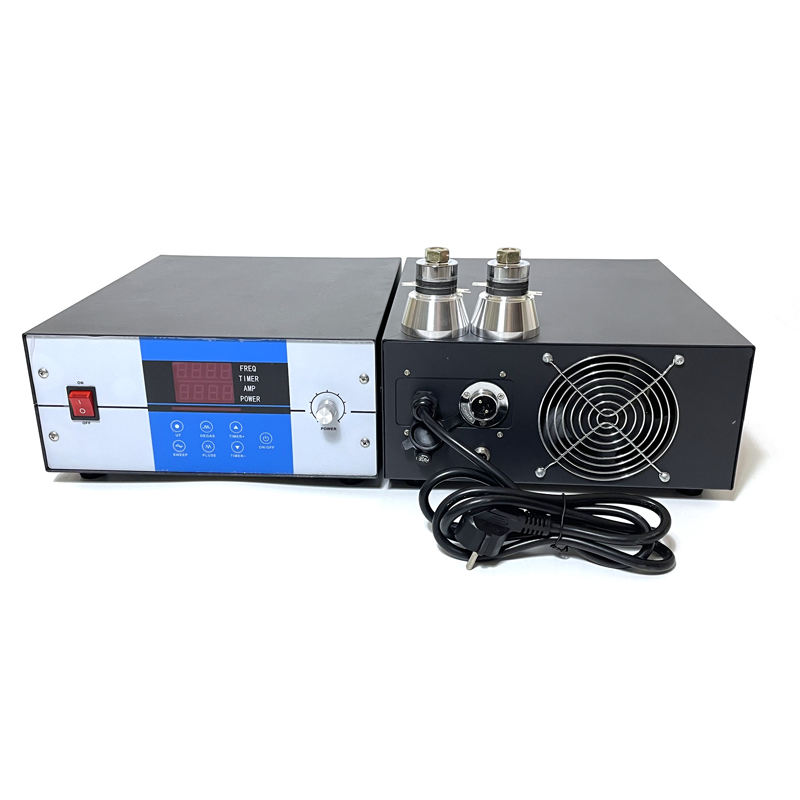

20khz Ultrasonic Industrial Generator Ultrasonic Sweep Frequency Generator For Cleaning System

20khz ultrasonic power generator The control circuit includes a signal generator, a power amplifier, a power supply, a power matching circuit, a control panel, a relay and an ultrasonic transducer, wherein the ultrasonic signal generator is respectively connected with the power supply and the power amplifier, and the signal generator generates the electrical signal of the frequency required for ultrasonic vibration, driving the power amplifier to work; The power amplifier is respectively connected with the relay, signal generator and power matching circuit, and the power amplifier is sent to the power matching circuit after power amplification; The power matching circuit connects the power amplifier and the ultrasonic transducer. The power matching circuit outputs the optimal load value after being amplified by the power amplifier through load adjustment, and drives the ultrasonic transducer to work







The 20 khz ultrasonic power generator can drive the ultrasonic transducer, including a plurality of ultrasonic transducer vibrators, which convert the electrical signals output by the power matching circuit into mechanical vibration signals; The relay is provided with a plurality of relays, one of which is respectively connected with the control panel and the power amplifier.







20khz ultrasonic power generator is applied to: ultrasonic cleaning equipment, industrial ultrasonic cleaning machine, ultrasonic vibration plate box, ultrasonic emulsification equipment, etc.
