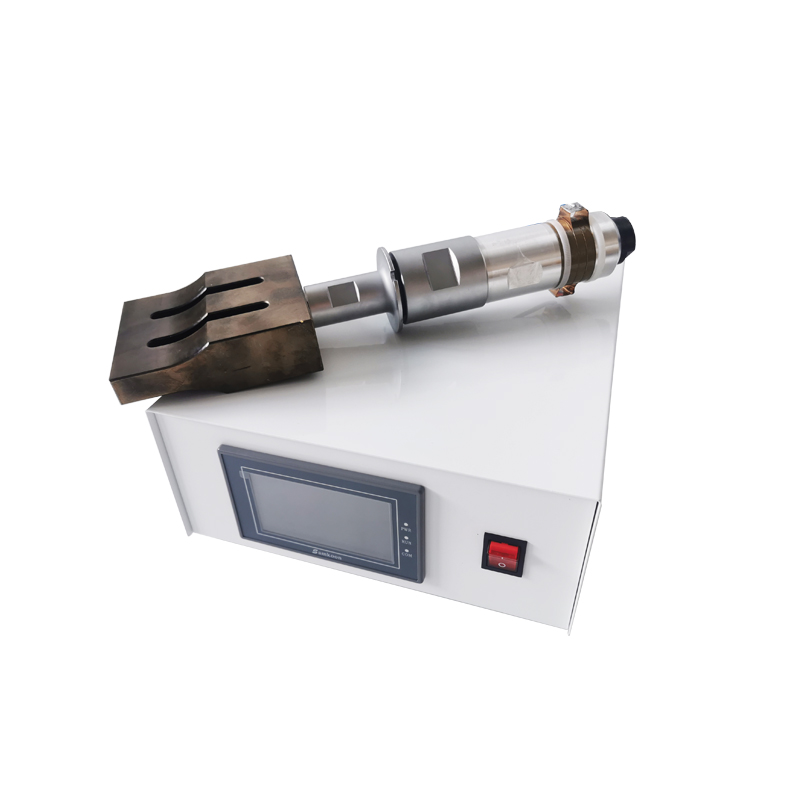

20khz/2000W rubber cutting ultrasonic generator

Features of Ultrasonic Welding Generator: (special for plastic and metal welding machines) Using 32-bit single chip microcomputer control system, all functions of the computer intelligent control, ultrasonic output frequency according to the frequency of the welding head and long-time welding products lead to the frequency deviation after the temperature of the welding joint rises, the frequency of the welding joint after pressing the product is false change, and the surrounding environment temperature is assisted, the ultrasonic output frequency is automatic, to ensure that the equipment works at the frequency point, so that the welded products are more stable Perfect, reliable and unified.



The built-in parameters are digitized by computer and the amplitude is automatically compensated. The amplitude is small when the load is not large, and the amplitude and power are synchronously amplified when the load is heavier, so as to effectively protect the transducer and welding joint mold, and the welding accuracy is higher; the internal power amplifier adopts full bridge IGBT module, which has high ultrasonic conversion rate, and can meet various welding requirements; More advanced protection circuit, the output sound wave overload, mold sudden rupture overload, built-in computer detection circuit in a very short time to cut off the output, thus protecting the internal circuit; 6, the control wiring of the electric box is very simple, two aviation plugs behind



Main features of ultrasonic generator



1. Amplitude fractional function amplitude compensation;

2. The welding amplitude is adjustable from 10% to 100% (1% accuracy);

3. Mould impedance analysis + protection + overload protection;

PU-UG100W	100W	28khz/40khz	110V or220V
PU-UG300W	300W	28khz/40khz	110V or220V
PU-UG500W	500W	15KHz/20khz/28khz/40khz	110V or220V
PU-UG900W	900W	15KHz/20khz/28khz	110V or220V
PU-UG1500W	1500W	15KHz/20khz	110V or220V
PU-UG1800W	1800W	15KHz/20khz	220V
PU-UG2000W	2000W	15KHz/20khz	220V
PU-UG2600W	2600W	15KHz	220V
PU-UG3200W	3200W	15KHz	220V
PU-UG4200W	4200W	15KHz	220V
