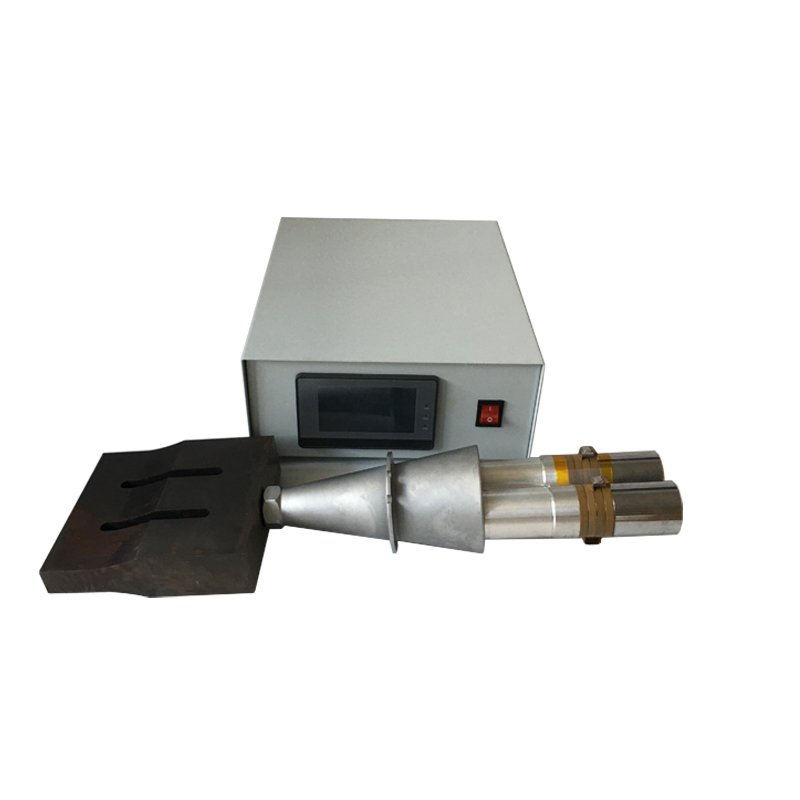

15khz/20khz Ultrasonic generator for earloop welding machine

Ultrasonic Welding Generator is a kind of equipment that converts the municipal power into the corresponding high-frequency alternating current of the transducer to drive the transducer to work. It is an important part of high-power ultrasonic system. It can also be called electronic box, ultrasonic driving power supply and ultrasonic controller. Although the ultrasonic generator can also be called the ultrasonic driving power supply, in fact, the ultrasonic generator is only a part of the ultrasonic driving power supply. Ultrasonic power supply can be divided into self excitation type and other excitation type according to different excitation modes, and ultrasonic generator refers to the other excitation type ultrasonic power supply. As the output power of the other excitation oscillation circuit is higher than that of the self-excited type by more than 10%, most of the current ultrasonic generators are used as the driving power supply.



The characteristics of the generator are as follows

In addition to adjusting the output power to make it stable, and adjusting the frequency to make the transducer work in a good state, the ultrasonic generator can also monitor the power and working frequency of the high-power ultrasonic system. It can automatically follow the frequency by setting parameters, control the amplitude to be stable when the load changes, and send an alarm when the situation is bad to protect the system Preparation, etc.

PU-UG100W	100W	28khz/40khz	110V or220V
PU-UG300W	300W	28khz/40khz	110V or220V
PU-UG500W	500W	15KHz/20khz/28khz/40khz	110V or220V
PU-UG900W	900W	15KHz/20khz/28khz	110V or220V
PU-UG1500W	1500W	15KHz/20khz	110V or220V
PU-UG1800W	1800W	15KHz/20khz	220V
PU-UG2000W	2000W	15KHz/20khz	220V
PU-UG2600W	2600W	15KHz	220V
PU-UG3200W	3200W	15KHz	220V
PU-UG4200W	4200W	15KHz	220V
