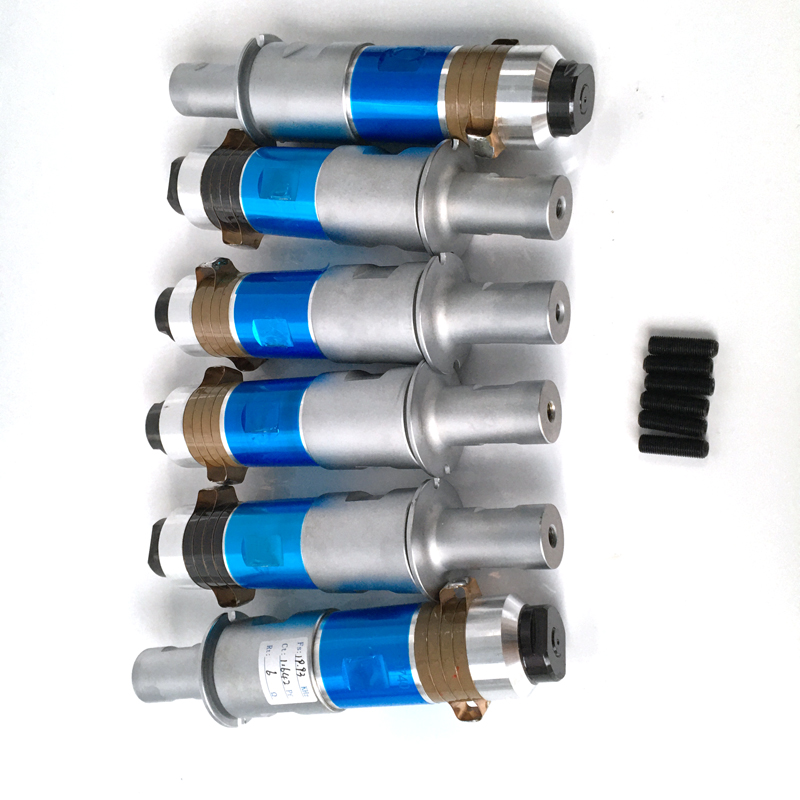

15khz/20khz Ultrasonic Welding Oscillator Transducer
Ultrasonic Welding Transducer is to transmit ultrasonic wave to plastic processing parts through welding head, which makes two plastic joint surfaces produce violent friction due to ultrasonic effect, and friction heat makes plastic joint surface melt and complete bonding. This technology has the advantages of fast speed, firm weld and so on. More importantly, it can make the production and processing of plastic products automatic. Ultrasonic plastic welding machine can be used for plastic welding, embedding, forming, riveting, spot welding, cutting, sewing and other operations. As long as the welding head is changed, it can be used in a variety of applications.
| Type | Full-length（mm） | Joint Bolt（mm） |
Frequency（KHz） |
Resonance Impedance（Ω） |
Capacity（pF） |
Input Power （W） |
|
PU-UWT152500 P8 |
153 |
M20×1.5 |
15 |
15 |
13000 |
2500 |
|
PU-UWT152000 P8 |
167 |
M20×1.5 |
15 |
10 |
9500 |
2000 |
|
PU-UWT151500 P4 |
171 |
M18×1.5 |
15 |
12 |
12500 |
1500 |
|
UCE-UWT151800 P4 |
118 |
M20×1.5 |
20 |
15 |
15000 |
1800 |
|
PU-UWT202000 P8 |
128 |
M18×1 |
20 |
10 |
11000 |
2000 |
|
PU-UWT202000 P8 |
124 |
M18×1.5 |
20 |
12 |
10000 |
1500 |
|
PU-UWT20700 P8 |
112 |
1/2-20 UNF |
20 |
15 |
9000 |
700 |
|
PU-UWT20900 P8 |
133 |
1/2-20 UNF |
20 |
15 |
10000 |
900 |
|
PU-UWT20600 P8 |
121 |
M18×1.5 |
20 |
15 |
6000 |
600 |
|
PU-UWT30500 P8 |
77 |
M10×1.5 |
30 |
5 |
5500 |
500 |
|
PU-UWT28200 P4 |
92.1 |
M10×1 |
28 |
20 |
3000 |
200 |
|
PU-UWT28100 P8 |
91 |
M8×1 |
28 |
25 |
2200 |
100 |
|
PU-UWT28250 P8 |
94 |
1/2-20 UNF |
28 |
20 |
4000 |
250 |
|
PU-UWT202000 P8 |
128 |
1/2-20 UNF |
20 |
10 |
20000 |
2000 |
|
PU-UWT201500 P8 |
124 |
1/2-20 UNF |
20 |
10 |
16000 |
1500 |
|
PU-UWT201300 P8 |
128 |
1/2-20 UNF |
20 |
10 |
12500 |
1300 |
|
PU-UWT201500 P8 |
132 |
1/2-20 UNF |
20 |
10 |
11000 |
1500 |
|
PU-UWT20900 P8 |
123 |
1/2-20 UNF |
20 |
10 |
9500 |
900 |
|
PU-UWT152000 P4 |
171 |
M18×1.5 |
15 |
12 |
10000 |
2000 |
|
PU-UWT35100 P8 |
71 |
M8×1 |
35 |
25 |
2200 |
100 |
|
PU-UWT38100 P8 |
66 |
M8×1.25 |
38 |
40 |
1200 |
100 |
|
PU-UWT38200 P4 |
65 |
M8×1 |
38 |
14 |
3300 |
200 |
