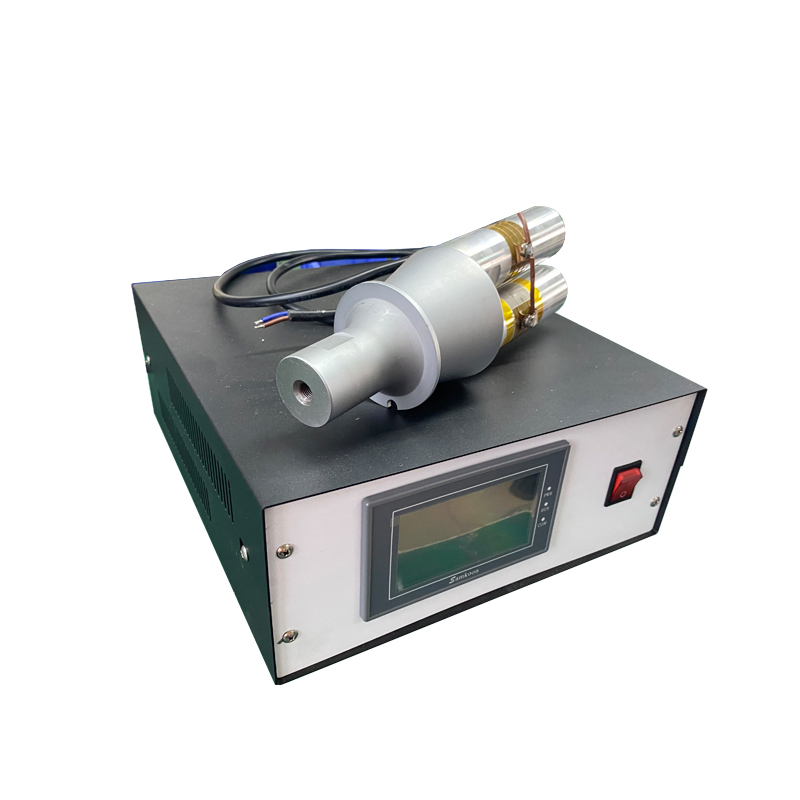

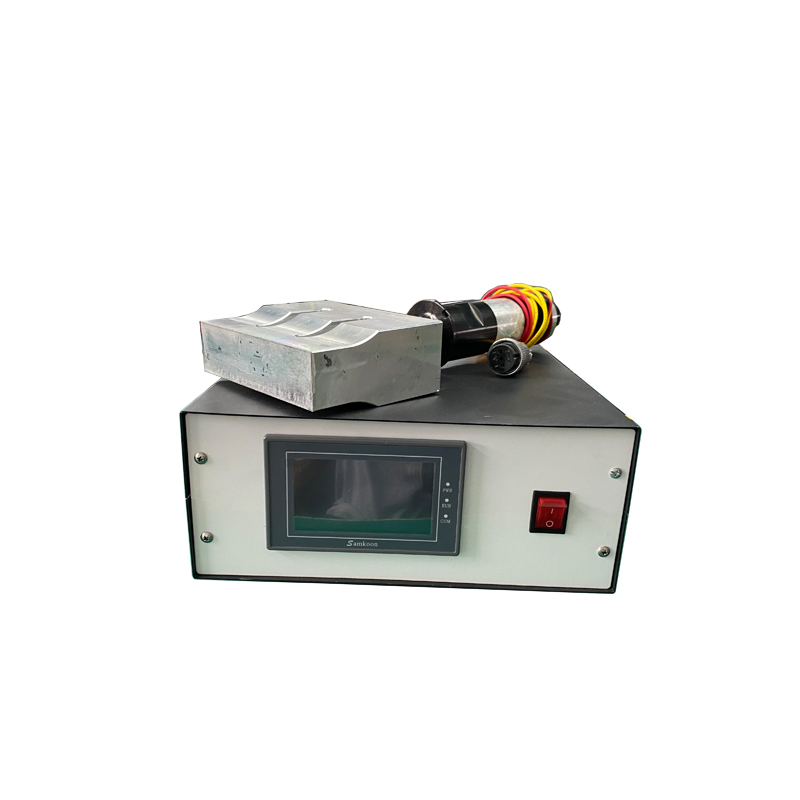

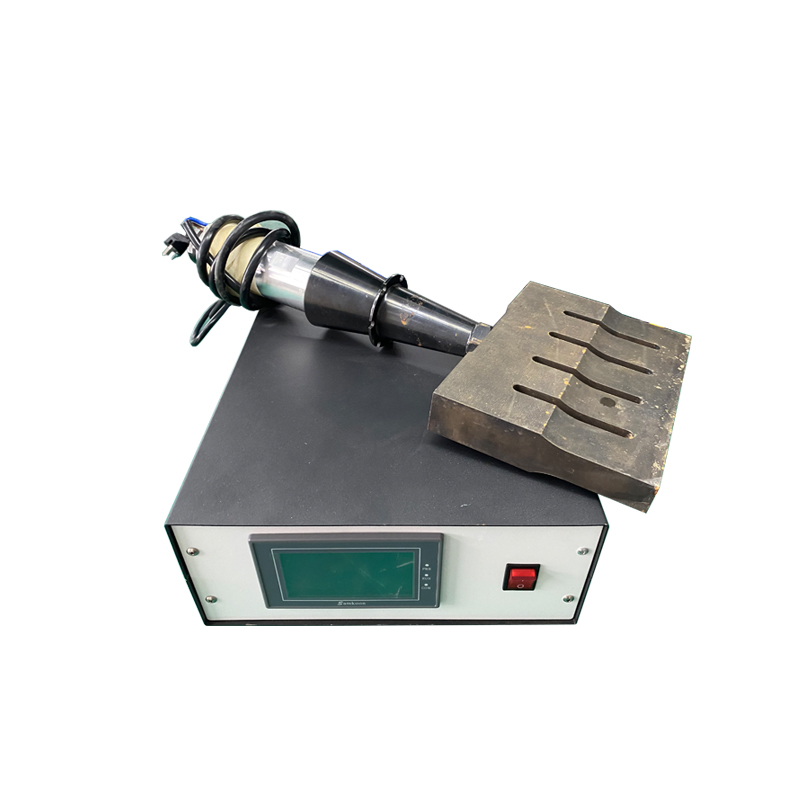

high power ultrasonic generator for welding 2000W/4200W

Features of ultrasonic welding generator: (special for plastic and metal welding machines) Using 32-bit single chip microcomputer control system, all functions of the computer intelligent control, ultrasonic output frequency according to the frequency of the welding head and long-time welding products lead to the frequency deviation after the temperature of the welding joint rises, the frequency of the welding joint after pressing the product is false change, and the surrounding environment temperature is assisted, the ultrasonic output frequency is automatic, to ensure that the equipment works at the frequency point, so that the welded products are more stable Perfect, reliable and unified.



Ultrasonic generator produced by acoustic power technology Co., Ltd. is used in various ultrasonic equipment, mainly including ultrasonic welding, ultrasonic cutting, ultrasonic sonochemical equipment, etc. Laboratory level sonochemical systems are mainly used in laboratory tests or small-scale production. The laboratory level sonochemical system produced by Hangzhou Chenggong ultrasonic power supply technology Co., Ltd. is characterized by high frequency, small size, light weight, easy to carry, real-time monitoring of power frequency and adjustable power, etc., with a length of 400mm-600mm.





Characteristics of ultrasonic welding generator:

1. Digital circuit: upgrade the ultrasonic welding machine. The traditional ultrasonic circuit generally uses analog circuit, and after upgrading, it adopts the digital circuit of foreign high-grade computer.

2. Time mode: time welding mode is adopted, which can input digital setting time directly; digital parameter record with automatic correction function can realize more accurate operation parameter setting.

4. Mold adjustment mode: this mode is used to debug the mold. In the process of mold debugging, in order to adjust the welding head and mold to make it accurate enough, it is necessary to continuously control the lifting of the welding head.

5. Adjustable amplitude: the amplitude can be adjusted from 20% to 100% and accurate to 1% during welding. Both large and small rubber parts can be welded perfectly, effectively reducing defects such as puncture and scald.

PU-UG100W	100W	28khz/40khz	110V or220V
PU-UG300W	300W	28khz/40khz	110V or220V
PU-UG500W	500W	15KHz/20khz/28khz/40khz	110V or220V
PU-UG900W	900W	15KHz/20khz/28khz	110V or220V
PU-UG1500W	1500W	15KHz/20khz	110V or220V
PU-UG1800W	1800W	15KHz/20khz	220V
PU-UG2000W	2000W	15KHz/20khz	220V
PU-UG2600W	2600W	15KHz	220V
PU-UG3200W	3200W	15KHz	220V
PU-UG4200W	4200W	15KHz	220V
