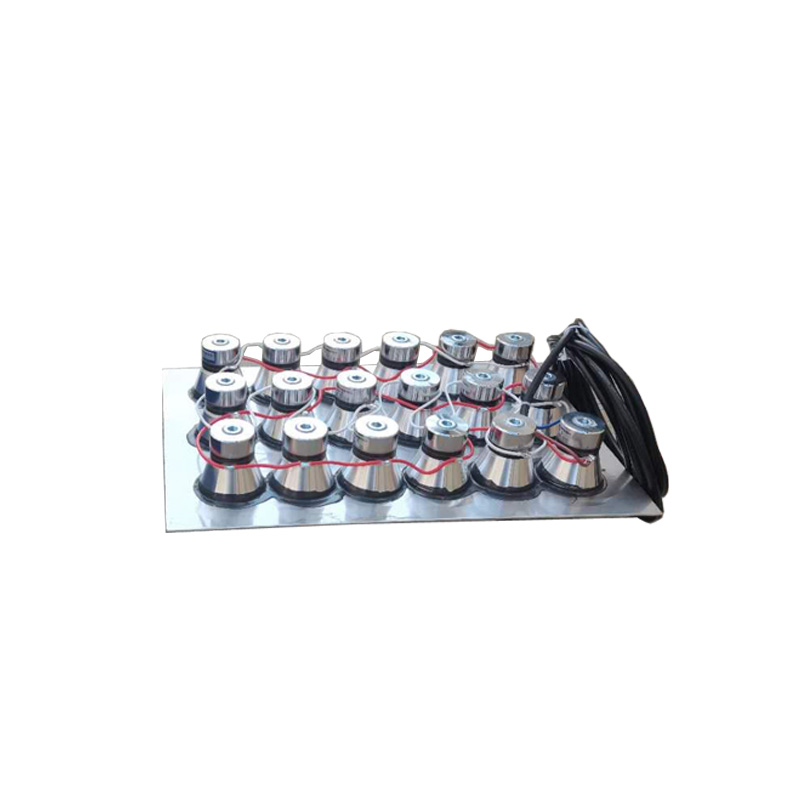

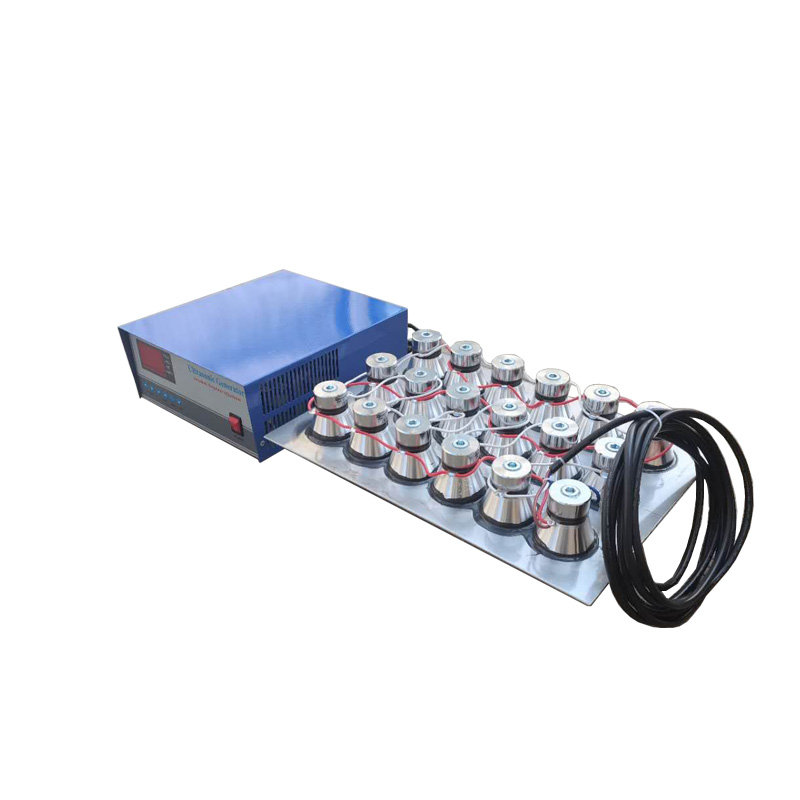

Flange type Immersible Ultrasonic Transducer for tank

1. The detachable ultrasonic vibration plate is characterized by that it can be opened at any time to check the vibrator inside. Most of it is connected by bolts and will not be deformed due to welding, so it is durable. It is easy to maintain and install. It is suitable for large-scale automatic optical cleaning machine, manual mobile phone glass ultrasonic cleaning machine and other equipment. The installation and layout are flexible. According to the need, the ultrasonic radiation surface can be arranged on the bottom, side or top of the cleaning tank.

2. The shock plate is made of stainless steel, alkali and acid resistant, and the surface of the shock plate is plated with hard chromium. Ultrasonic transducer adopts high-quality and high-performance products, with high efficiency of electro-acoustic conversion.

3. The split structure is adopted. The high frequency wire with socket is used to connect the shock plate and the ultrasonic generator, so it is convenient to use and maintain.

4. The installation and layout are flexible, and the ultrasonic radiation surface can be arranged on the bottom, side or top of the cleaning tank according to the needs.

5. Ultrasonic vibration plate can be customized according to customer requirements, ultrasonic vibration plate is suitable for cleaning electroplating parts before cleaning, clock parts, hardware and machinery parts, polyester filter element, semiconductor silicon chip, tools, lenses, glasses frame, jewelry, jewelry, glass, utensils and other industries, widely used.

Type	Diamention(mm)	Frequency (Khz)	Power(W)	Ultrasonic Transducer
PU-UITP300W	300*190*100	25,28,33,40,80,130	300	6
PU-UITP600W	360*275*100	25,28,33,40,80,130	600	12
PU-UITP1000W	450*350*100	25,28,33,40,80,130	1000	20
PU-UITP1200W	470*380*100	25,28,33,40,80,130	1200	24
PU-UITP1500W	520*450*100	25,28,33,40,80,130	1500	30
PU-UITP1800W	560*450*100	25,28,33,40,80,130	1800	36
PU-UITP2000W	650*450*100	25,28,33,40,80,130	2000	40
PU-UITP2400W	740*520*100	25,28,33,40,80,130	2400	48
PU-UITP3000W	820*540*100	25,28,33,40,80,130	3000	60
PU-UITP5000W	1200*590*100	25,28,33,40,80,130	5000	100
OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
