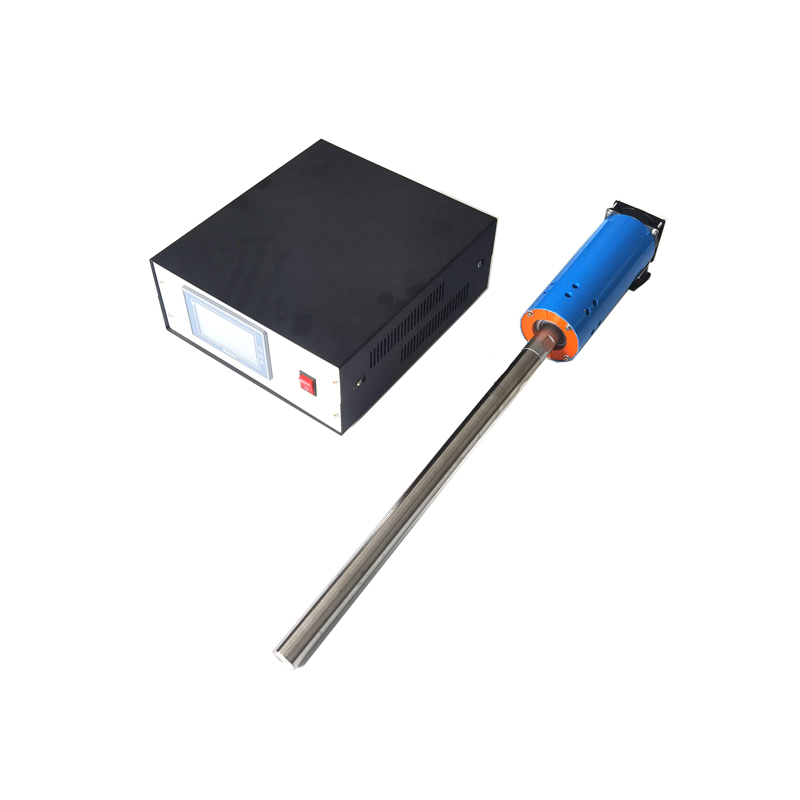

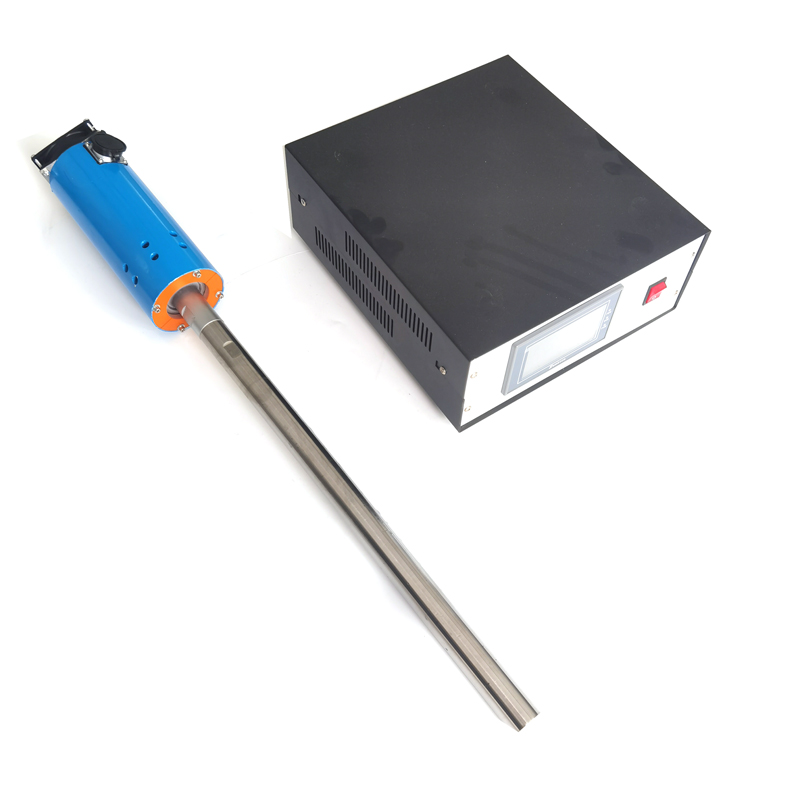

Material crushing and dispersion Ultrasonic Reactor

Submerged ultrasonic vibrating plate can be used when the ordinary trough cleaning machine is not applicable in some specific working places. The submerged vibrating plate can be designed into different shapes and sizes according to customer requirements. It adopts * * stainless steel top secret welding, with acid and alkali resistance, corrosion resistance, convenient disassembly and easy maintenance.



◇ some models of this series of products are special models designated by many well-known pharmaceutical machine manufacturers. They have been put into use in the production lines of large infusion, oral liquid, water injection, powder injection, syrup, etc. of nearly 1000 pharmaceutical factories across the country, and have been widely praised by users!



◇ in the extraction of traditional Chinese medicine, ultrasonic circulation extraction technology has been widely used. Ultrasonic extraction uses the cavitation effect of ultrasonic wave to increase the solvent penetration, improve the drug dissolution rate and times, so as to increase the diffusion of material components, shorten the extraction time and accelerate the extraction process.



◇ this series of products can be used in various cleaning lines, or ultrasonic transformation of existing cleaning tanks. It is widely used in automobile, machinery, electronics, wine making, food, chemical industry, pharmacy, semiconductor manufacturing, magnetic materials, molds, electroplating, multi arc ion plating, oil pump nozzle and other industries. For example, ultrasonic vibration box can be used to clean large rubber molds such as tires, V-belts and synchronous belts, together with large stainless steel heating and cleaning.

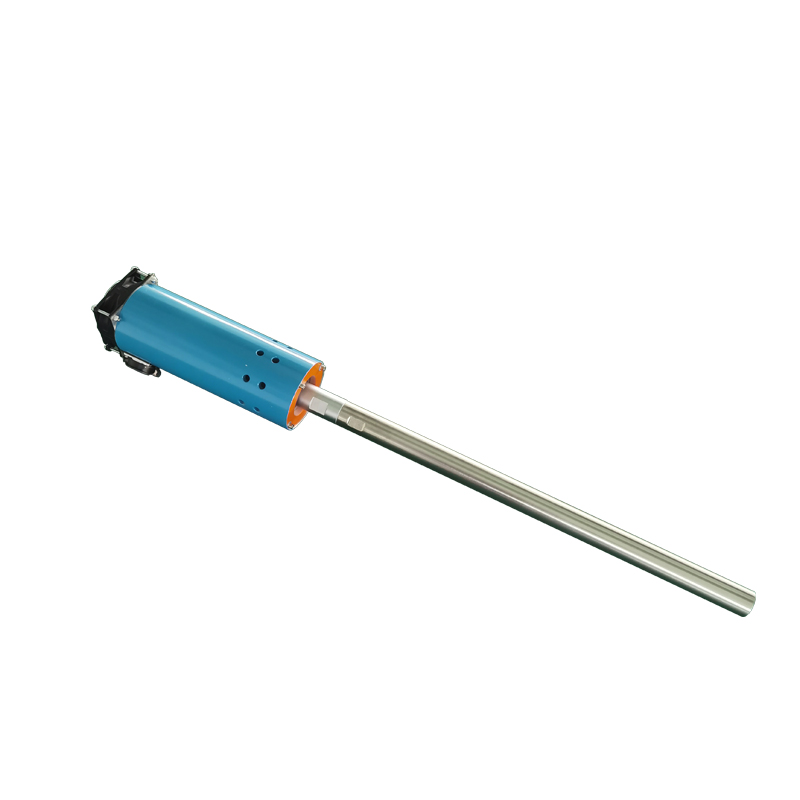

Tubular Equipment Type	Tubular Transducer Type	Frequency (KHz)	Ultrasound Output(W)	Total Length (mm)	Diameter (mm)	Static Capacity (pF±10%)
PU-UW1	UW-61	15-28	1000	500	Φ50-55	68000
PU-UW5	UW-25	15-28	1500	850	Φ50-55	68000
PU-UW6	UW-16	15-28	2000	1100	Φ50-55	132000
