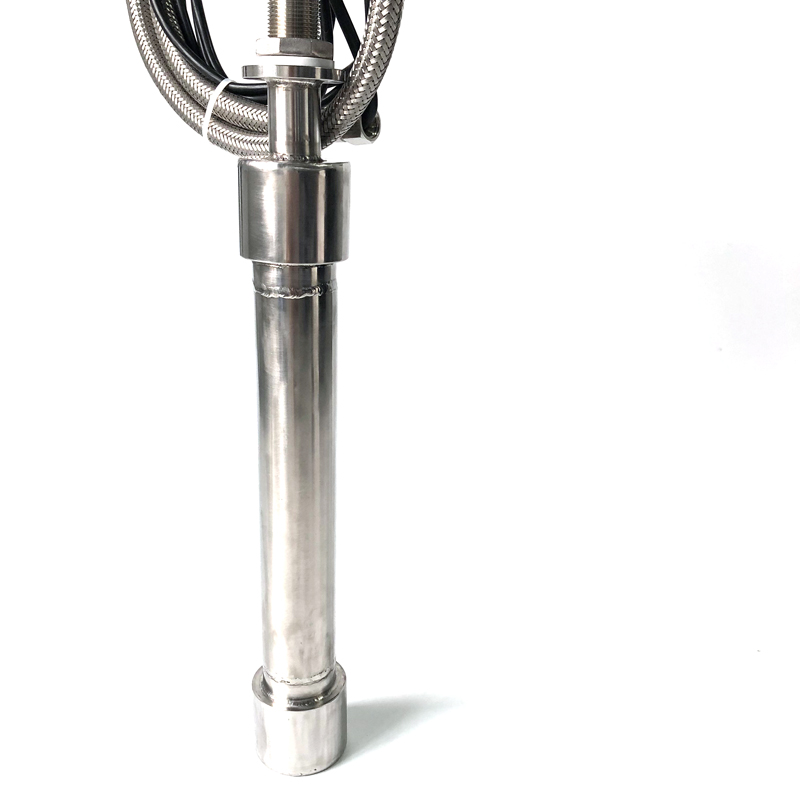

Ultrasonic Tubular Transducer for Industrial cleaning

The ultrasonic vibrator is mainly used for cleaning the inner wall of all kinds of tube and tube structure vessels, such as boiler on-line ultrasonic scale prevention, vacuum / pressure ultrasonic cleaning, metal pipe inner wall cleaning and high-power sonochemical treatment fields, such as extraction and separation of traditional Chinese medicine, ultrasonic cleaning of vacuum / pressure situation, and high-power sonochemical treatment Synthesis and degradation, biodiesel production, microbial control, degradation of toxic organic pollutants, biodegradation, bio cell crushing, dispersion and agglomeration, etc.



Application scope of vibrating rod of ultrasonic cleaning machine:

1. Biological industry: essential oil extraction, traditional Chinese medicine preparation, natural pigment extraction, polysaccharide extraction, flavonoids extraction, alkaloid extraction, polyphenol extraction, organic acid extraction, oil extraction.

2. Laboratory application: chemical stirring, logistics stirring, cell crushing, product crushing, material dispersion (suspension preparation) and coagulation.

3, chemical industry: ultrasonic emulsification and homogenization, ultrasonic gel liquefaction, resin defoaming, ultrasonic crude oil demulsification.

4. Ultrasonic biodiesel production: in a variety of chemical production significantly accelerate the intensification of transesterification and various chemical reactions.

5. Water treatment industry: degradation of polluted water quality.

6. Food and cosmetics industry: alcohol alcoholization, cosmetics particles refinement, nanoparticles extraction.

7. Graphene industry: graphene dispersion, preparation of graphene nanoparticles.

8. In some landscape lakes and rivers, ultrasonic vibration rods can also be used to kill and inhibit algae.

Tubular Equipment Type	Tubular Transducer Type	Frequency (KHz)	Ultrasound Output(W)	Total Length (mm)	Diameter (mm)	Static Capacity (pF±10%)
PU-UE1	US-61	15-28	1000	500	Φ50-55	68000
PU-UE5	US-25	15-28	1500	850	Φ50-55	68000
PU-UE6	US-16	15-28	2000	1100	Φ50-55	132000
