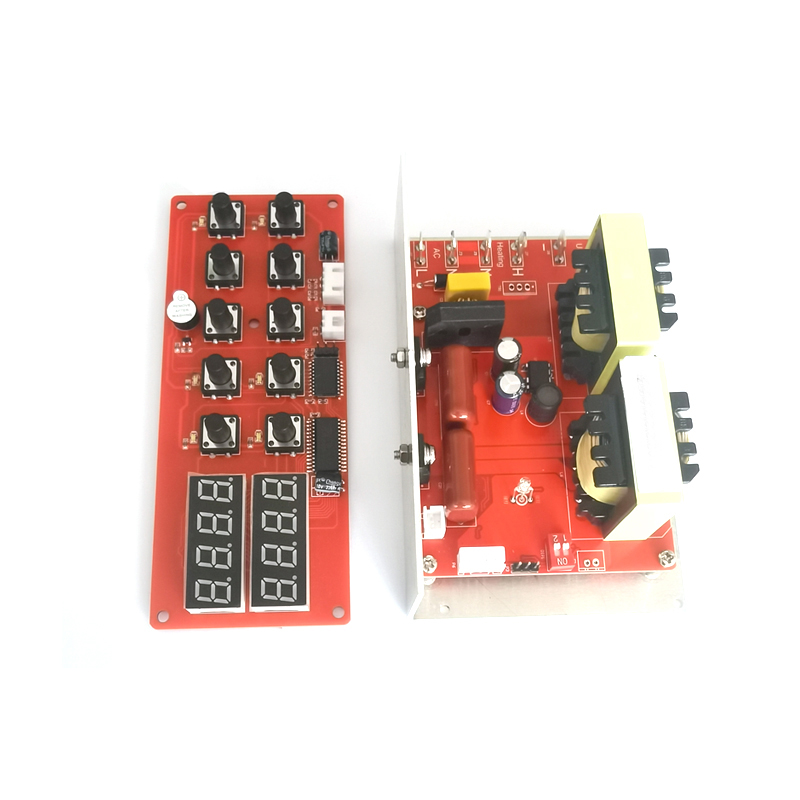

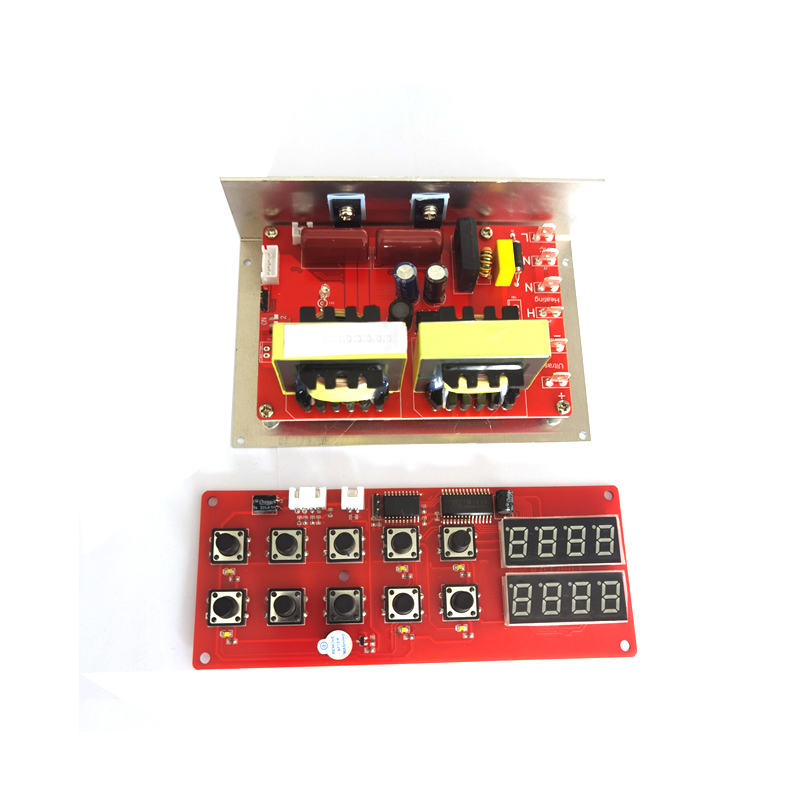

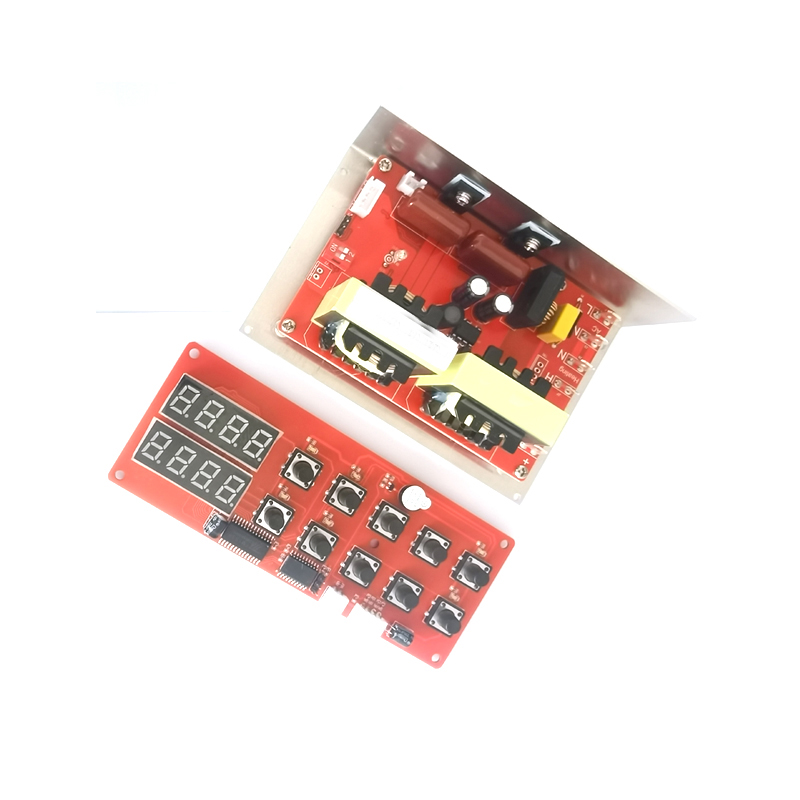

50W/100W Ultrasound Generator Circuit with Digital display

The ultrasonic generator independently developed and produced by our company has the following characteristics:



① It has the function of frequency sweeping cleaning, that is, the impact reflux cleaning is used to generate intermittent and impact ultrasonic acceleration and shock wave in the cleaning solution to quickly clean the stains on the surface of the workpiece, but it is not suitable for long-term frequency sweeping cleaning.



② . it has overvoltage, overcurrent and overheating protection functions to protect the generator from burning out to the greatest extent.



③ With timing function, it is convenient for the manufacturer to realize high-precision timing cleaning. The timing range is 0-59 minutes and 59 seconds, saving labor cost.









This is the latest high-power ultrasonic transducer (digital) driver developed by the company. It uses embedded system as the control core and high-power M05 tube as the output driver. It has high accuracy, prevents external interference and operates stably. In addition to the high reliability, long life, input and output characteristics, high insulation safety, electromagnetic compatibility and noise tolerance requirements of general electronic products, the ultrasonic driver has all the functions required for transducer matching, such as power regulation, frequency sweeping, automatic frequency, alarm, timing, temperature control, remote control and so on.
