Industrial Ultrasonic Cleaner with Filtration System

The single groove Industrial Ultrasonic Cleaner with Filtration System can be designed according to the user's requirements, such as throwing, circulating, filtering and lifting. The size of the single groove ultrasonic cleaning machine can be designed according to the user's requirements, Scope of application: electronic parts, electroplating, stainless steel valves, hardware products, aluminum parts, plastic products, machinery, watch band, mould, optical lens, jewelry, lens, spectacle frame, semiconductor silicon wafer, spinneret, filter element and glassware, single slot ultrasonic cleaner uses water-based and a little additive as cleaning agent, with low cost and good cleaning effect, Is the most ideal. The most affordable cleaning equipment

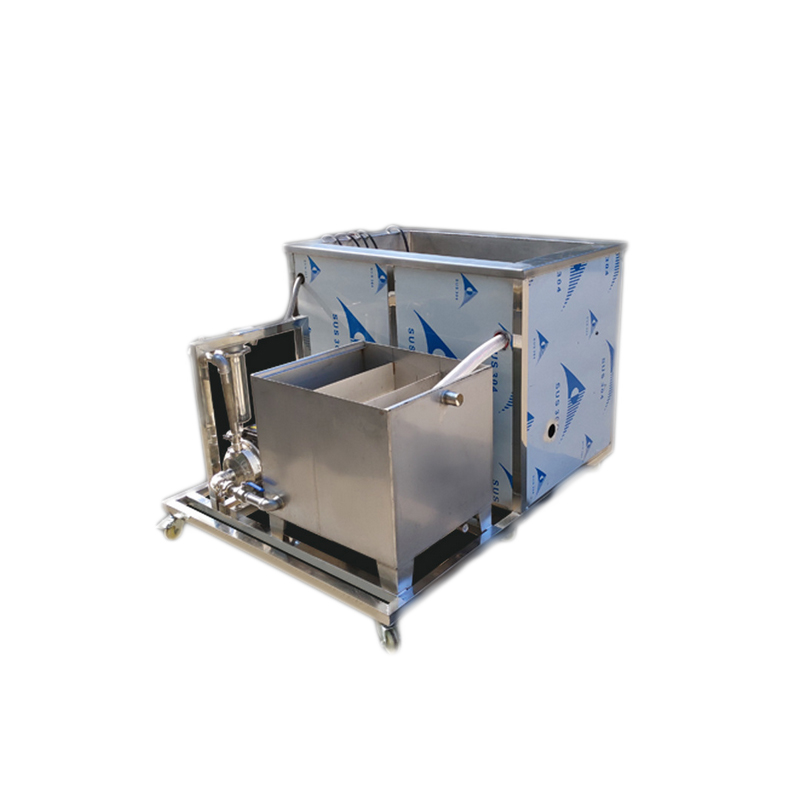

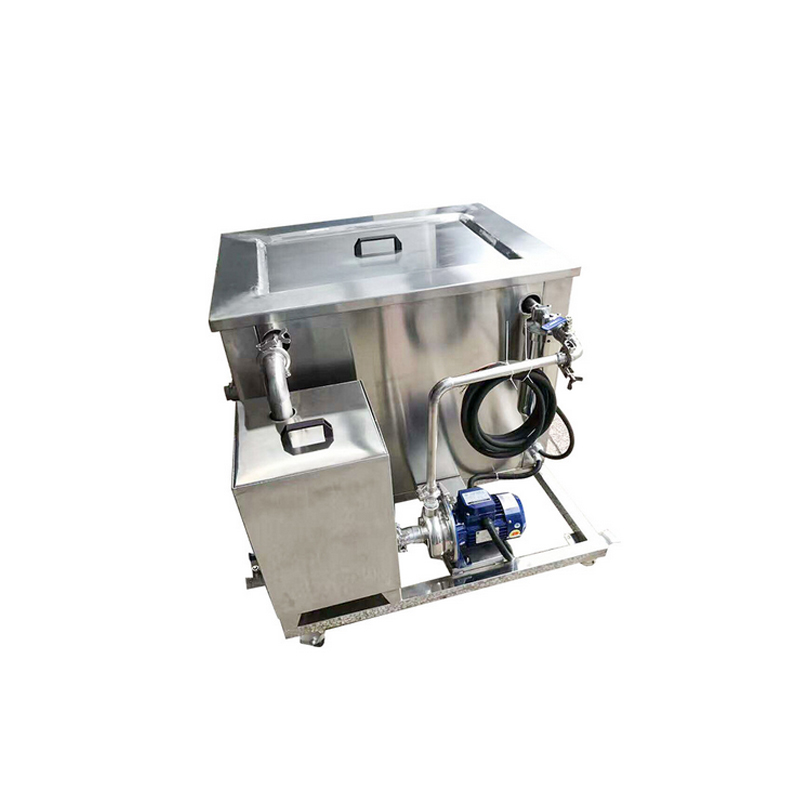

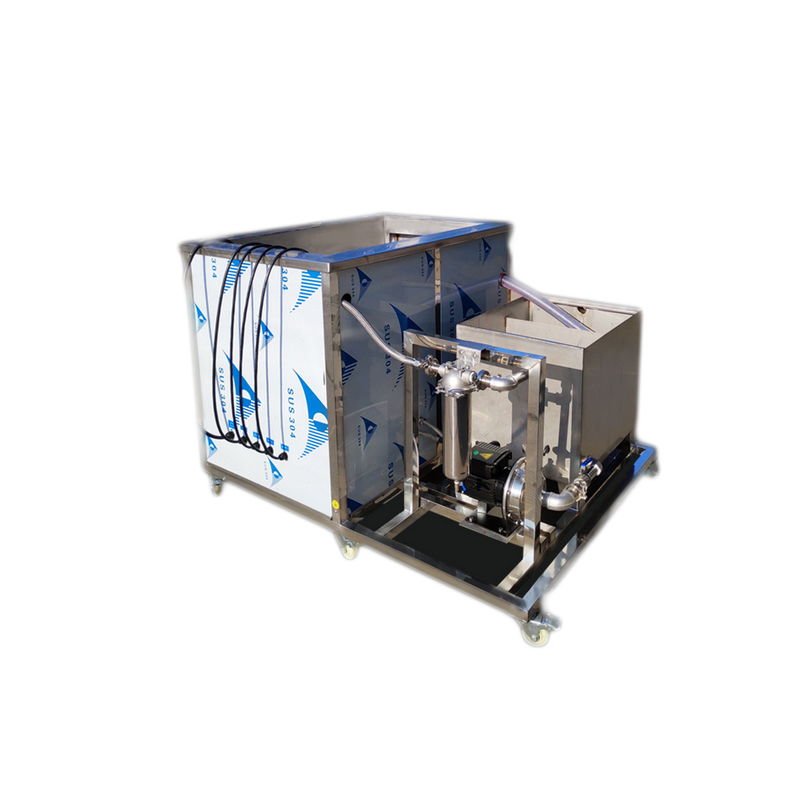

Equipped with a set of circulating system:

The cleaning liquid in the cleaning tank forms self circulation through water separator, circulating pump, filter, pipeline and ball valve to filter impurities in the cleaning liquid. The strength of the flow rate and head of the circulating pump ensures the removal of suspended dust in the cleaning solution.

The circulating pump is equipped with automatic / manual selection switch. Under automatic condition, the circulating pump is started at the beginning of cleaning and automatically closed after cleaning. The outlet of the circulating system is equipped with a pressure indicator.

Frequency: 28kHz, heating: 6kW * deliver one cleaning basket

The cleaning tank is made of imported SUS316, 2mm thick stainless steel plate, and the outer plate is made of SUS304, 1mm thick stainless steel plate. The main electrical components and control parts of the equipment are high-quality imported parts.

The appearance of the equipment should be beautiful, fine, convenient for maintenance and repair, providing convenience for emergency.

The equipment maintenance is convenient, and the cleaning tank is simple and convenient.

Type	Internal size L*W*H (mm)	Frequency (Khz)	Power(W)	Heating(W)
PU-XH1006ST	280×210×210	20,28,33,40,80,130	300	100
PU-XH1012ST	400×310×280	20,28,33,40,80,130	600	300
PU-XH1018ST	490×360×320	20,28,33,40,80,130	900	500
PU-XH1024ST	630×430×320	20,28,33,40,80,130	1200	1000
UCE-XH1030ST	630×530×320	20,28,33,40,80,130	1500	1000
PU-XH1036ST	680×530×360	20,28,33,40,80,130	1800	1000
PU-XH1040ST	680×570×400	20,28,33,40,80,130	2000	1000
PU-XH1041ST	730×570×450	20,28,33,40,80,130	2400	2000
PU-XH1042ST	790×670×510	20,28,33,40,80,130	3000	2000
PU-XH1043ST	850×770×570	20,28,33,40,80,130	4000	2000
PU-XH1044ST	910×820×620	20,28,33,40,80,130	5000	3000
PU-XH1045ST	960×870×680	20,28,33,40,80,130	8000	4000
PU-XH1046ST	1100×930×730	20,28,33,40,80,130	10000	5000
