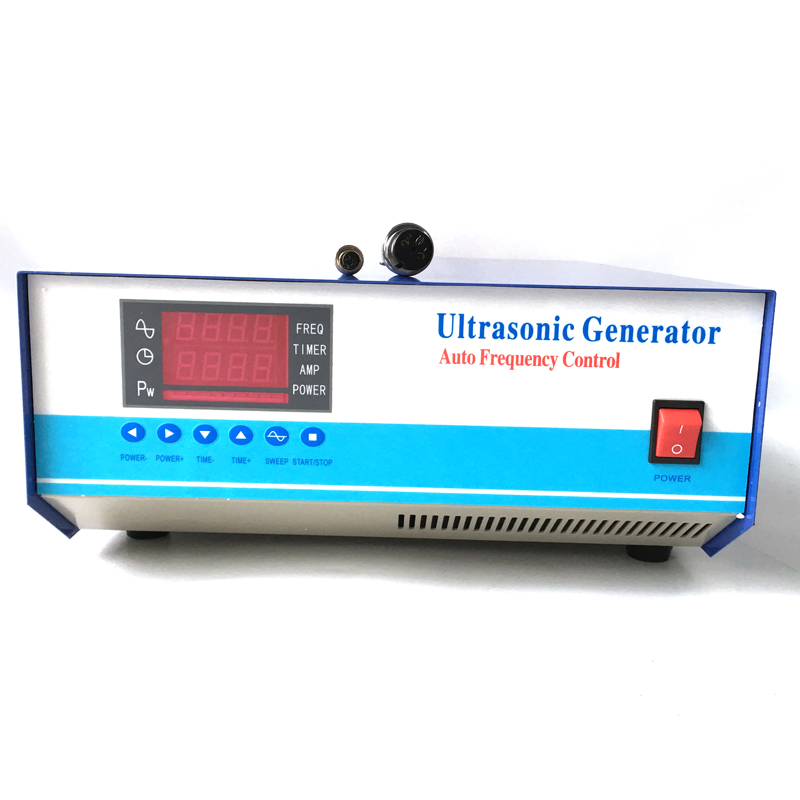

28khz/40khz submersible ultrasonic generator

Dte：2020-11-14 Number of visits：Number

Ultrasonic frequency generator can meet the requirements of various precision cleaning in industrial field. It can provide fast, uniform and high-quality cleaning effect whether it is used alone or matched with large-scale automatic cleaning line. The generator can have five kinds of frequency selection.

Its distinctive features are as follows:

(1) dust proof structure assembly reduces environmental requirements

(2) imported power devices, strong output signal

(3) it has the function of sweeping frequency and uniform ultrasonic cavitation

(4) stable output frequency and fast disturbance recovery

With the rapid development of electronic technology, the generation and update of ultrasonic generator are also blooming. Our company's newly designed series of ultrasonic generators is another wonderful flower in the generator garden. In addition to inheriting the common advantages of ultrasonic generator in the industry: powerful power, stable operation and simple mode, the generator adopts dust-proof and moisture-proof structure in the main assembly, carries a powerful switch driver chip in the circuit, and realizes intelligent control such as under load alarm and fast over-current protection. The generator can be conveniently used for power output adjustment, frequency sweep, alarm, travel control and other functions.

Type	Power（W）	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PU-GT300	300W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PU-GT600	600W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PU-GT900	900W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PU-GT1000	1000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PU-GT1200	1200W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PU-GT1500	1500W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PU-GT1800	1800W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PU-GT2000	2000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PU-GT2400	2400W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PU-GT3000	3000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	65-80khz
High Frequency	300W-1200W	120-135khz
