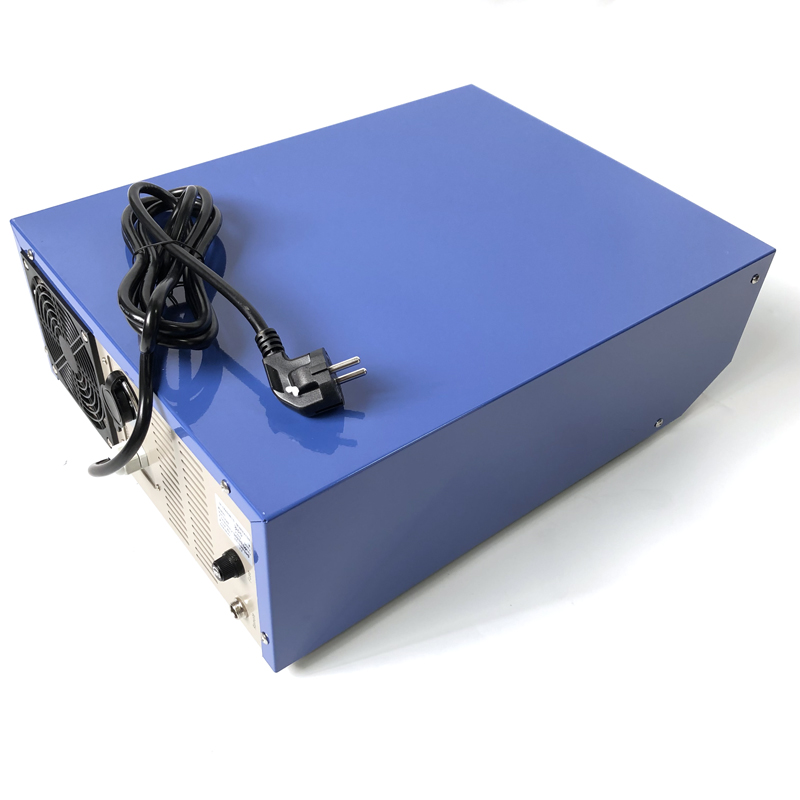

Immersible ultrasonic generator for cleaning transducer

Dte：2020-11-14 Number of visits：Number

The control box circuit of Ultrasonic frequency generator adopts the advanced technology such as the excitation circuit controlled by microcomputer, the automatic frequency tracking and frequency sweeping working mode. Compared with the traditional control box, it has stable and reliable operation, continuously adjustable ultrasonic power, and can maximize the potential of the transducer. Working frequency automatic tracking makes output match better, power more powerful and efficiency higher. The unique working mode of frequency sweeping makes the cleaning fluid form a small backflow under the effect of frequency sweep, and timely take the dirt stripped by ultrasonic from the surface of the workpiece, so as to achieve a faster and more thorough cleaning effect, and the ultrasonic cleaning efficiency is higher. At the same time, it has perfect protection function: overheat protection and over-current protection, which makes the work more reliable. There is also a four bit timer to make the time control accurate to seconds. With digital power adjustment, it can adapt to different cleaning requirements. The working state of the machine can be changed at will, so it is more free to use. The modular design of the whole machine, combined with the computer fault location and display system, makes its use and maintenance more convenient. In the structure, the anti-corrosion control panel and electrical insulation protection mode are used to make it work in harsh environment.

ultrasonic generator characteristic:

(1) Single chip microcomputer control, IGBT working mode, ultrasonic output power increased by more than 15% compared with the old circuit, and continuously stepless adjustable, liquid crystal display.

(2) The working voltage of the ultrasonic generator is 220 V AC ± 10%. The ultrasonic generator has over-voltage, over-current and output short-circuit protection measures.

(3) The ultrasonic generator has the function of stepless power adjustment. The output power can be adjusted continuously from 0% to 100% to meet the requirements of various cleaning objects.

(4) The ultrasonic generator is equipped with digital ultrasonic working time of 0 ~ 999min, accurate to seconds, and automatic unattended.

Type	Power（W）	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PU-GT300	300W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PU-GT600	600W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PU-GT900	900W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PU-GT1000	1000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PU-GT1200	1200W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PU-GT1500	1500W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PU-GT1800	1800W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PU-GT2000	2000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PU-GT2400	2400W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PU-GT3000	3000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	65-80khz
High Frequency	300W-1200W	120-135khz
