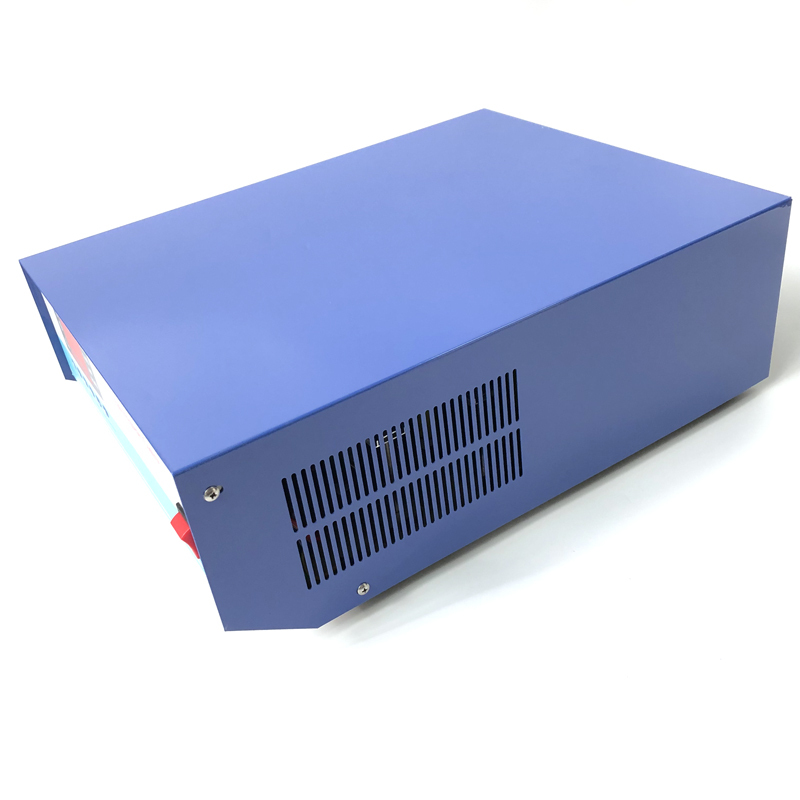

28khz/40khz adjustable frequency ultrasonic generator

Dte：2020-11-14 Number of visits：Number

Characteristics of ultrasonic frequency generator

1. Unique appearance, compact circuit. Fully intelligent and digital display:

2. Single chip microcomputer frequency synthesis technology and sweep frequency scanning technology make the cleaning more uniform and adapt to a wider range;

3. Digital ultrasonic power, continuous 10-100% adjustable, more flexible and convenient to use;

4. Design timing system, working time digital display, the maximum can be set 59 minutes 59 seconds;

5. PLC remote control interface can be selected to facilitate the connection with other control equipment.

Precautions when using ultrasonic generator: 1. Working temperature range: minimum - 10 ° C to maximum + 40 ℃. 2. If the local power supply is 110V AC 60Hz, please match a transformer with corresponding power. 3. Professional engineers are required to match the power supply and load. Please do not change or match the drive by yourself, otherwise the power supply will be damaged. It is suggested that the manufacturer should match the power supply to provide better after-sales service and technical solutions. Please use under the training of professional engineers or fully understand the use of ultrasound.

Type	Power（W）	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PU-GT300	300W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PU-GT600	600W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PU-GT900	900W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PU-GT1000	1000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PU-GT1200	1200W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PU-GT1500	1500W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PU-GT1800	1800W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PU-GT2000	2000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PU-GT2400	2400W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PU-GT3000	3000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	65-80khz
High Frequency	300W-1200W	120-135khz
