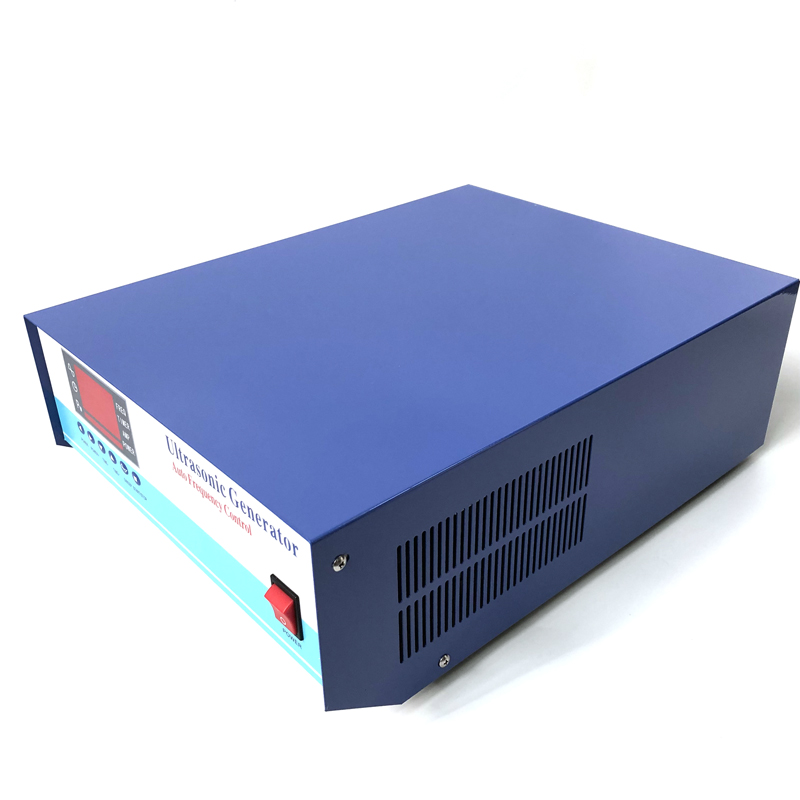

adjustable power Ultrasonic Generator 2000W/3000W

Dte：2020-11-14 Number of visits：Number

Ultrasonic frequency generator is a kind of equipment that converts the market power into the corresponding high-frequency alternating current of the transducer to drive the transducer to work. It is an important part of high-power ultrasonic system. It can also be called electronic box, ultrasonic driving power supply and ultrasonic controller. Although the ultrasonic generator can also be called the ultrasonic driving power supply, in fact, the ultrasonic generator is only a part of the ultrasonic driving power supply. Ultrasonic power supply can be divided into self excitation type and other excitation type according to different excitation modes, and ultrasonic generator refers to the other excitation type ultrasonic power supply. As the output power of the other excitation oscillation circuit is higher than that of the self-excited type by more than 10%, most of the current ultrasonic generators are used as the driving power supply.

An ultrasonic cleaning machine is mainly composed of three parts: ultrasonic power supply (also known as ultrasonic generator) + ultrasonic transducer (namely ultrasonic vibrator) + cleaning tank. The first two parts are very important and directly affect the effect of ultrasonic cleaning.

Ultrasonic transducer is to convert the electrical signal provided by ultrasonic generator into mechanical vibration. The essence of ultrasonic generator is a power signal generator, which produces sinusoidal (or similar sinusoidal) signals with a certain frequency. The development of ultrasonic generator is closely related to the development of power electronic devices. It can be generally divided into electronic tube and analog transistor. Switching transistor.

Type	Power（W）	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PU-GT300	300W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PU-GT600	600W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PU-GT900	900W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PU-GT1000	1000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PU-GT1200	1200W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PU-GT1500	1500W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PU-GT1800	1800W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PU-GT2000	2000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PU-GT2400	2400W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PU-GT3000	3000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	65-80khz
High Frequency	300W-1200W	120-135khz
