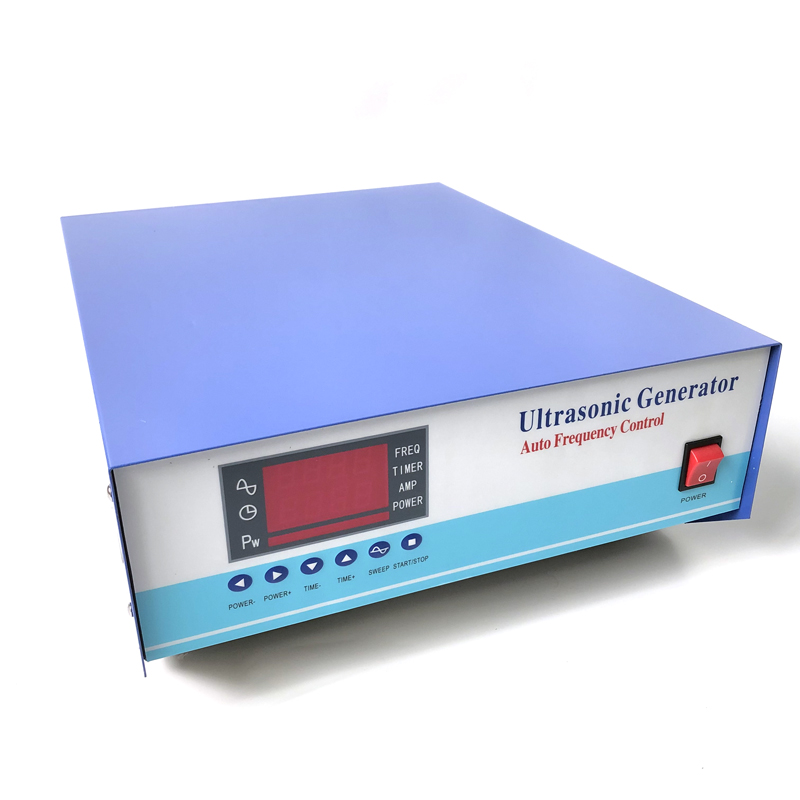

Signal frequency Ultrasonic Generator for cleaning

Dte：2020-11-14 Number of visits：Number

Ultrasonic frequency generator in the rapid development of industrialization today, ultrasonic cleaning, has completely replaced manual cleaning, suitable for electronics, hardware, circuit, electroplating, stainless steel, ceramics, lighting, automotive industry, tableware disinfection, precision instruments, optics and other industries, with high efficiency, low cost, thorough cleaning, no dead corner, strong practicability, etc., is widely used at home and abroad It is widely used by large customers. Our company also launched intelligent ultrasonic generator.

Adjustment Description:

1. Start the machine to check whether the frequency displayed by the generator is consistent with the frequency of ultrasonic transducer, such as 28kHz, 40KHz, etc.

2. Connect the positive and negative electrodes of the load correctly (Note: the negative electrode is usually connected with the tank body of the cleaning machine or the vibrating plate steel plate).

3. The ultrasonic generator should be correctly connected to 220 V power supply, and the power supply should be reliably grounded.

4. Please do not use more than 3K of rated power generator, and do not use more than 3K of rated power generator at the same time.

5. If the current cannot be adjusted, check whether the transducer is short circuited, whether the connecting wire is correct, whether the frequency is corresponding, and whether the internal components of the generator are damaged.

Type	Power（W）	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PU-GT300	300W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PU-GT600	600W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PU-GT900	900W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PU-GT1000	1000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PU-GT1200	1200W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PU-GT1500	1500W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PU-GT1800	1800W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PU-GT2000	2000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PU-GT2400	2400W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PU-GT3000	3000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	65-80khz
High Frequency	300W-1200W	120-135khz
