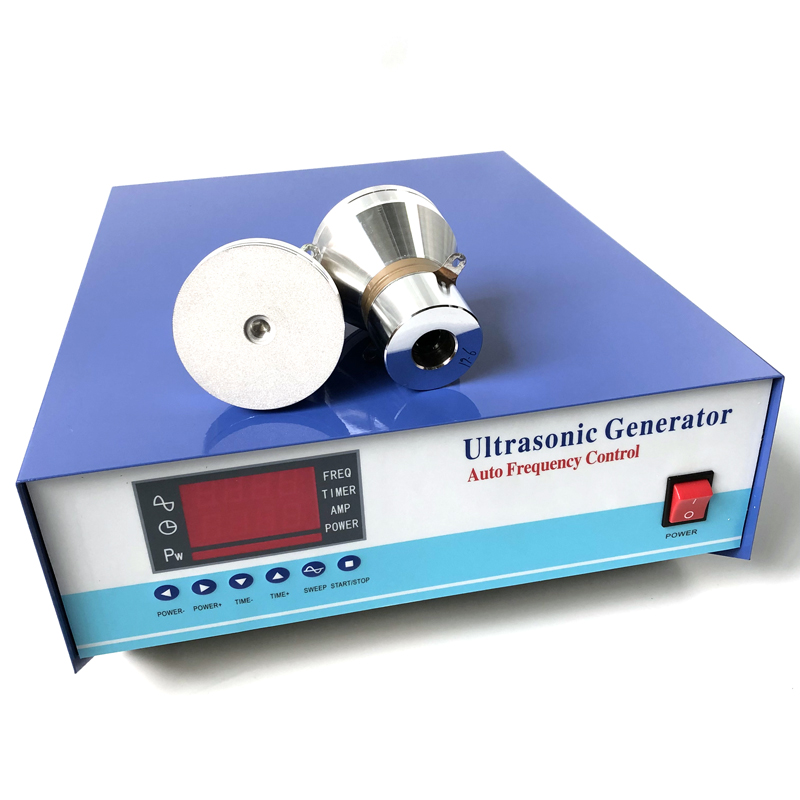

28khz Digital Frequency Auto-Tracking Ultrasonic Generator

Dte：2020-11-14 Number of visits：Number

Ultrasonic frequency generator for the gradual development of ultrasonic cleaning machine needs, through the efforts of the R & D department, grandly launched the ultrasonic cleaning machine generator, which is based on the ordinary ultrasonic generator, through upgrading the control program, adding the automatic scanning function, analysis system, evaluation system, special adjustment over-current protection function and working over-current protection function Acoustic generator. Ultrasonic generator, in addition, there are

Three advantages of ultrasonic generator:

1. High cleaning efficiency. The actual power of ordinary ultrasonic generator, such as 60W ultrasonic transducer, is about 70% of the rated power. With the influence of pasting technology and glue, the actual output power is less than 60%. The ultrasonic effect is very weak, even without ultrasound. Our company's new intelligent ultrasonic generator, the actual output power as high as 93%, high efficiency.

2. The ultrasonic density is high. This is a very professional parameter. It is easy for many customers to go into a misunderstanding, that is, good ultrasonic wave is good effect. In fact, it is wrong. Whether the ultrasonic wave is good or not depends on the cleaning effect, density and uniformity. The density here is high, only in the unit area, under the condition of constant ultrasonic power, the higher the ultrasonic density, the better the effect. For example, in a square centimeter, some have 50 points of ultrasound, some have only 20 points.

3. The uniformity of ultrasonic wave is good. This is another professional parameter. Uniformity is another important parameter of cleaning workpiece cleanliness, which determines that in the cleaning process, any unit area of the workpiece surface is cleaned thoroughly, instead of the situation where a very dense centralized cleaning is carried out and the other corner cannot be cleaned. This is through the professional tester test, in contrast to all domestic brands of ultrasonic generators, it is concluded that taiheda intelligent ultrasonic generator is the current domestic uniformity.

Type	Power（W）	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PU-GT300	300W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PU-GT600	600W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PU-GT900	900W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PU-GT1000	1000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PU-GT1200	1200W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PU-GT1500	1500W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PU-GT1800	1800W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PU-GT2000	2000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PU-GT2400	2400W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PU-GT3000	3000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	65-80khz
High Frequency	300W-1200W	120-135khz
