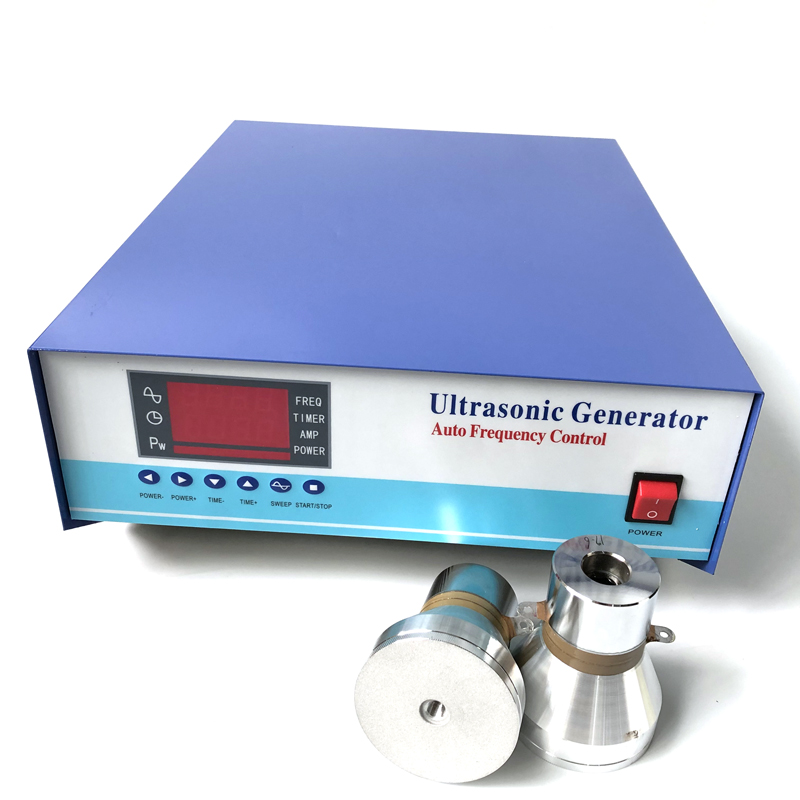

40khz Automatic frequency tracking ultrasonic generator

Dte：2020-11-14 Number of visits：Number

Ultrasonic frequency generator mainly adopts digital modular technology, which can meet the requirements of any precision cleaning. It can provide fast, uniform and high quality cleaning effect whether it is connected with single groove, vibrating plate or large cleaning system.

1. Led, LCD display, intuitive grasp of the working state of the whole machine.

2. Automatic frequency tracking, phase angle control, high output efficiency and stability. Even if the impedance changes due to the change of liquid temperature, depth, type, cleaning material and negative pressure state, and even the voltage of power supply changes, it can supply stable power.

3. The output power is adjustable, and the cleaning time can be set arbitrarily to meet the cleaning needs of different products.

4. Frequency scanning, different band width and scanning frequency can be selected to eliminate standing wave, improve ultrasonic energy distribution and eliminate cleaning blind area.

High and low voltage circuit, high and low voltage isolation.

6. High efficient and unique cooling air duct, anti-corrosion design, suitable for long-term work in humid and corrosive environment.

7. Safety protection: when the transducer is abnormal (short circuit or open circuit), abnormal output power and abnormal temperature rise, it will automatically stop the machine for protection.

Type	Power（W）	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PU-GT300	300W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PU-GT600	600W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PU-GT900	900W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PU-GT1000	1000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PU-GT1200	1200W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PU-GT1500	1500W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PU-GT1800	1800W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PU-GT2000	2000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PU-GT2400	2400W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PU-GT3000	3000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	65-80khz
High Frequency	300W-1200W	120-135khz
