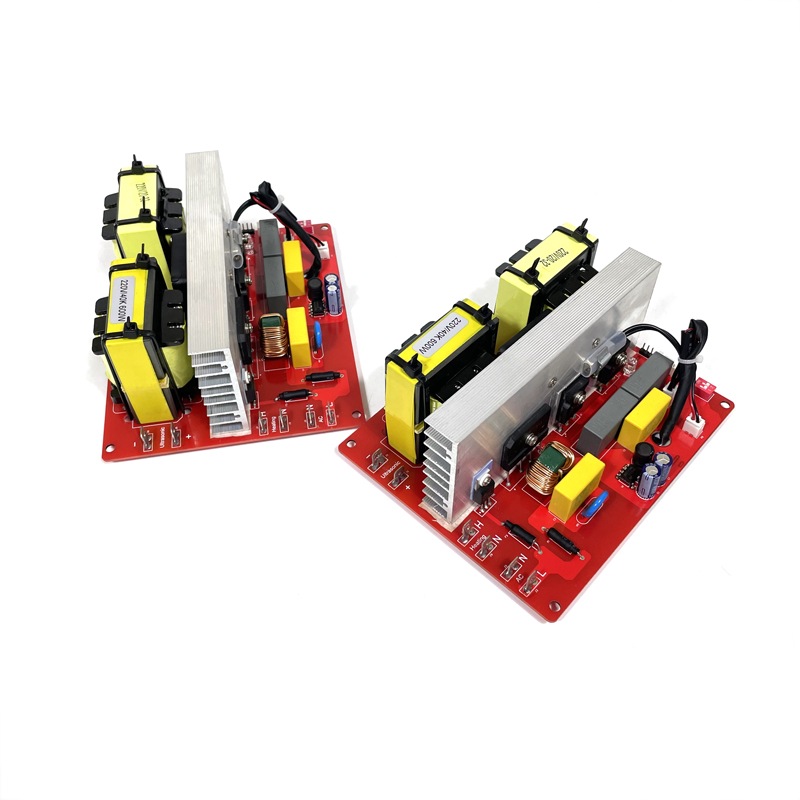

110V or 220V Ultrasonic Cavitation Cleaner Generator PCB For Ultrasonic Generator Parts

The ultrasonic cleaning power supply includes a control board, an ultrasonic cleaning generator and an ultrasonic cleaning machine, wherein the control board is located in the ultrasonic cleaning generator, including: a circuit board; The controller is arranged on the circuit board. The digital potentiometer is used to adjust the sweep speed and output power of the ultrasonic cleaning generator, which solves the problems of low adjustment accuracy and large adjustment error of the ultrasonic cleaning generator.







The ultrasonic control board drives the circuit board and solves the problem that it is difficult to achieve the same process parameter setting in different production lines due to the rotation angle error in the adjustment process and the instability of manual operation in the relevant technology, resulting in inconsistent cleaning effect.







The driving circuit board of ultrasonic control board adopts digital potentiometer to realize digital control of frequency sweep speed and output power, thus ensuring the consistency of cleaning effect. The ultrasonic control board drives the circuit board to modulate the ultrasonic signal of the ultrasonic cleaning generator through the triangular wave signal of the first digital potentiometer, and adjust the frequency sweep speed of the ultrasonic cleaning generator, so as to achieve better adjustment accuracy.
