20khz Pvc Ultrasonic Welding Machine For Folder File/pp

The larger the area of Ultrasonic Welding Machine joint is, the greater the dispersion of high frequency vibration energy is, and the welding effect will become unable to achieve the welding effect. In fact, the longer the distance is, the more energy will be lost. If the ultrasonic welding seam is controlled within 6cm and the welding line is controlled at 30-80 wires, the perfect effect can be achieved only when the thickness of plastic parts is greater than 2mm. Different products have different ultrasonic wave plastic welding.



When ultrasonic plastic welding machine products, it is necessary to understand the melting points of different plastics. Through reasonable welding joint design and welding time setting, the product welding seam reaches the specified melting point temperature, so as to exert certain pressure, the product joint position fusion is completed. If the welding temperature is not reached, the welding will fail.

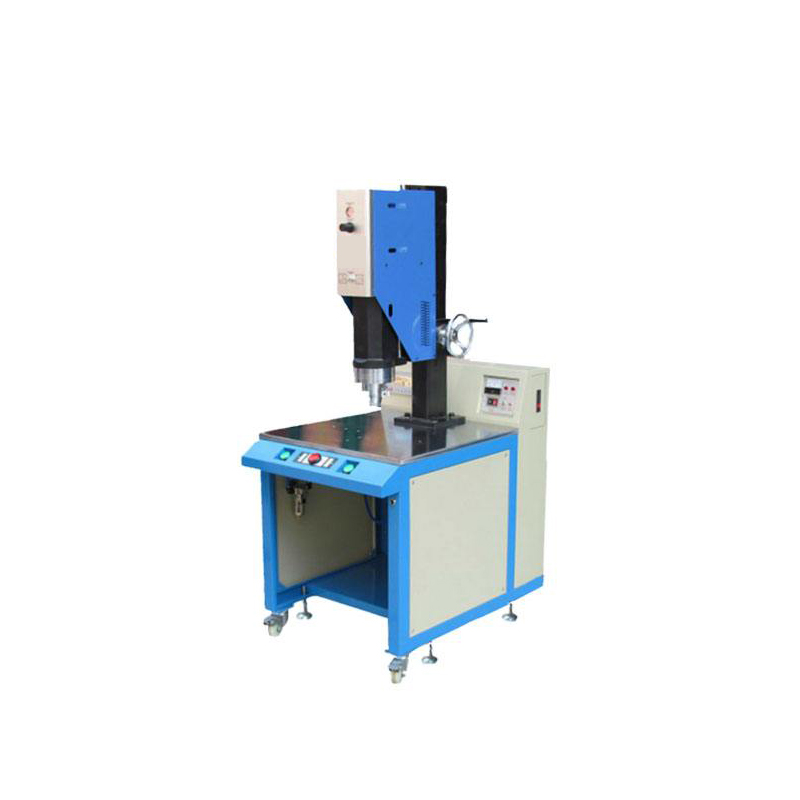

Ultrasonic plastic welding machine

Ultrasonic welding head is simulated and verified by computer software, but it meets the welding requirements of products and is processed by high-tech master. Rigorous design and inspection process is an important issue of welded joint and the basic requirement of plastic product quality assurance.

Type	Power(W)	Frequency (KHz)
PU-UWM600W	600W	15KHZ/20KHZ/28KHZ/40KHZ
PU-UWM900W	900W	15KHZ/20KHZ/28KHZ/40KHZ
PU-UWM1000W	1000W	15KHZ/20KHZ/28KHZ/30KHZ
PU-UWM1500W	1500W	15KHZ/20KHZ
PU-UWM1800W	1800W	15KHZ/20KHZ
PU-UWM2000W	2000W	15KHZ/20KHZ
PU-UWM2600W	2600W	15KHZ
PU-UWM3200W	3200W	15KHZ
PU-UWM4200W	4200W	15KHZ
