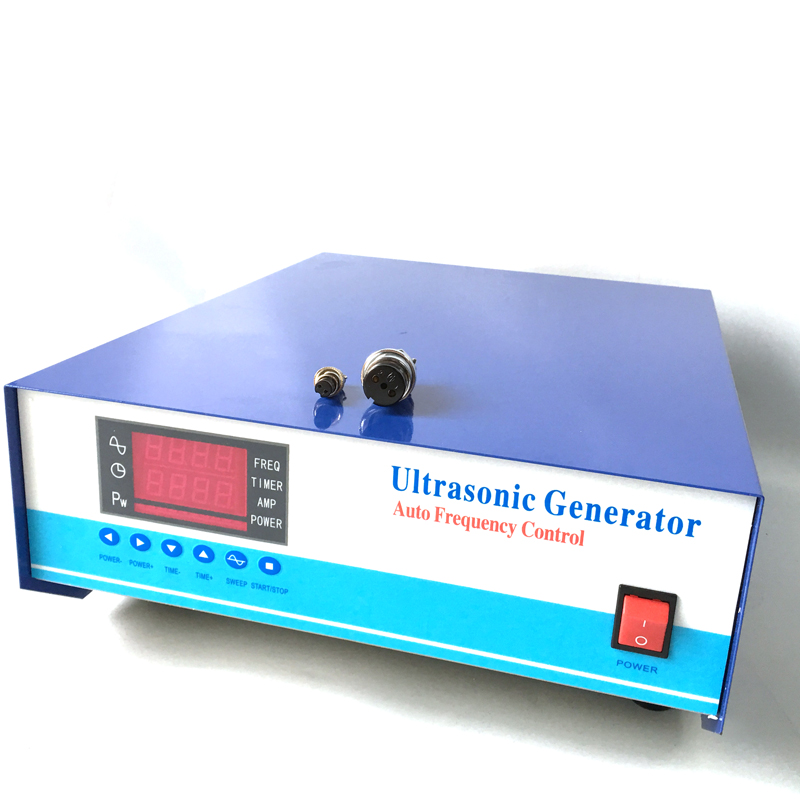

The full series of digital standard ultrasonic generator is a high-performance
ultrasonic power supply product independently developed and manufactured by our company with reference to foreign advanced technology. Long term use has proved that the ultrasonic generator can provide fast, uniform and high-quality cleaning effect whether connected to a single cleaning tank, vibrating plate or large-scale cleaning system.
The standard ultrasonic generator is more efficient, stable and easy to operate and maintain.
Leading technology
1. Digital control technology, perfect circuit design, stable power output.
2. Excellent frequency control technology, high output efficiency and stability. Even if the impedance changes due to the change of liquid temperature, depth, type, cleaning material and negative pressure state, and even the voltage of power supply changes, it can supply stable power.
3. Automatic broadband scanning, can choose different band width to eliminate standing wave, improve ultrasonic energy distribution, eliminate cleaning blind area. It has special unique advanced functions such as frequency adjustment and frequency compensation.
safeguard
1. Comprehensive protection (over-current protection, overheating protection, over-voltage protection, anti-corrosion and dust-proof protection, etc.),
2. The high and low voltage circuits are completely separated, the operation safety is guaranteed, and the ability to resist dry torsion is strong.
Easier operation and maintenance
1. Led and LCD display window can directly grasp the working and running state of the whole machine.
2. The output power is adjustable, the cleaning time can be set arbitrarily, and the frequency can be adjusted to meet the cleaning needs of different products.
3. We can design and manufacture generators with different frequency, power and function according to customer requirements. It can be connected to remote control system and operate process flow through network.
4. With time display control, power display adjustable, frequency adjustable and other functions.
5. It can be maintained by itself without professional staff, and it is easy to operate
Longer life
1. High efficient and unique cooling air duct, anti-corrosion design, suitable for long-term work in humid and corrosive environment.
2. When the transducer is abnormal, the power is too high, the output is abnormal, and the temperature is abnormal, it will automatically stop the machine for protection and greatly extend the service life.
3. High quality components imported from USA and Japan, shock resistant and stable output.
|
Type
|
Power（W）
|
Frequency (KHz)
|
Transducer numbers
|
Size
|
|
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system
|
|
PU-GT300
|
300W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
3-6
|
300x360x150
|
|
PU-GT600
|
600W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
6-12
|
300x360x150
|
|
PU-GT900
|
900W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
9-18
|
300x360x150
|
|
PU-GT1000
|
1000W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
10-20
|
300x360x150
|
|
PU-GT1200
|
1200W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
12-24
|
300x360x150
|
|
PU-GT1500
|
1500W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
15-30
|
300x360x150
|
|
PU-GT1800
|
1800W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
18-36
|
300x360x150
|
|
PU-GT2000
|
2000W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
20-40
|
300x360x150
|
|
PU-GT2400
|
2400W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
24-48
|
300x360x150
|
|
PU-GT3000
|
3000W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
50-60
|
300x360x150
|
|
High Frequency
|
300W-1200W
|
65-80khz
|
|
High Frequency
|
300W-1200W
|
120-135khz
|
Consult immediately
