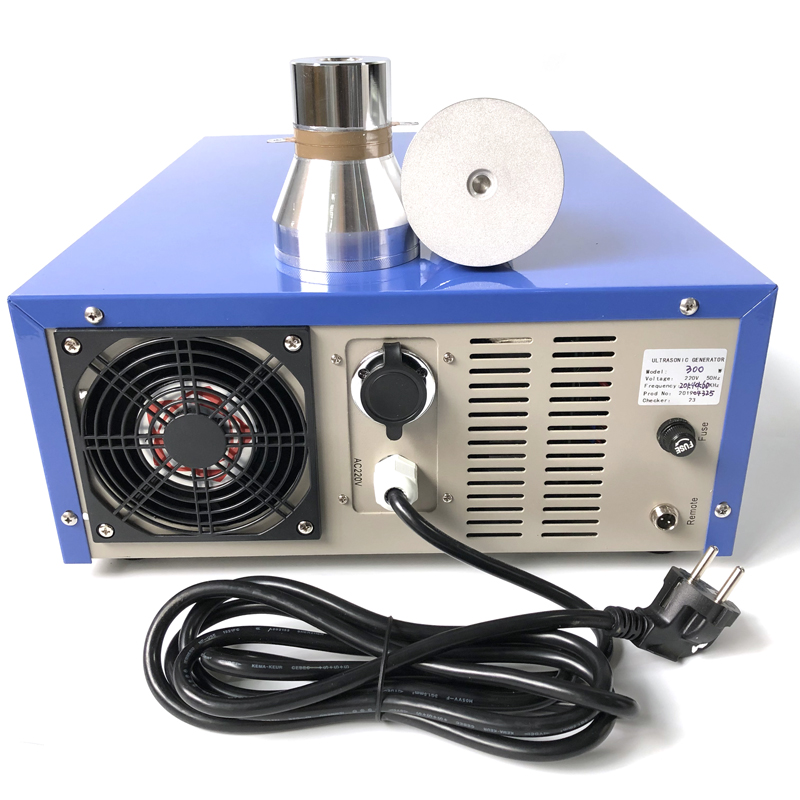

DIY Ultrasonic generator for cleaning tank

Dte：2020-11-14 Number of visits：Number

Ultrasonic frequency generator is the latest high-power ultrasonic transducer (digital) driver developed by our company. The embedded system is used as the control core, and the high-power M05 tube is used as the output drive. It has high precision, prevents external interference and operates stably. In addition to the high reliability, long life, input and output characteristics, high insulation safety, electromagnetic compatibility and noise tolerance requirements of general electronic products, the ultrasonic driver has all the functions required for transducer matching, such as power regulation, frequency sweep, frequency automatic tracking, alarm, timing, temperature control, remote control, etc.

·Adjustable output rate: smooth linear adjustment of output power, adjustable from 20% to 100%

·Sweep frequency: different sweep frequency can be set, the sweep width is 20% ~ 100%

·Alarm: over current, overheat alarm, output under power alarm, output open circuit alarm, output frequency drift alarm, remote control communication timeout alarm

·Timing: can set the ultrasonic generator timing work, timing range (1s ~ 9999s)

·Temperature control (optional): the temperature of ultrasonic tank is collected, and the heater is controlled by relay to maintain the temperature change within ± 2 ℃ of the set temperature

·Remote control: provide RS485 interface, remote control panel, can realize power, timing, temperature and other remote settings, fault display, switch control;

·Energy control: control the constant power output of ultrasonic transducer;

·It can display the frequency, power and corresponding status when working;

·Multi language interface, communication function and interface with PC.

Type	Power（W）	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PU-GT300	300W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PU-GT600	600W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PU-GT900	900W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PU-GT1000	1000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PU-GT1200	1200W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PU-GT1500	1500W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PU-GT1800	1800W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PU-GT2000	2000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PU-GT2400	2400W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PU-GT3000	3000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	65-80khz
High Frequency	300W-1200W	120-135khz
