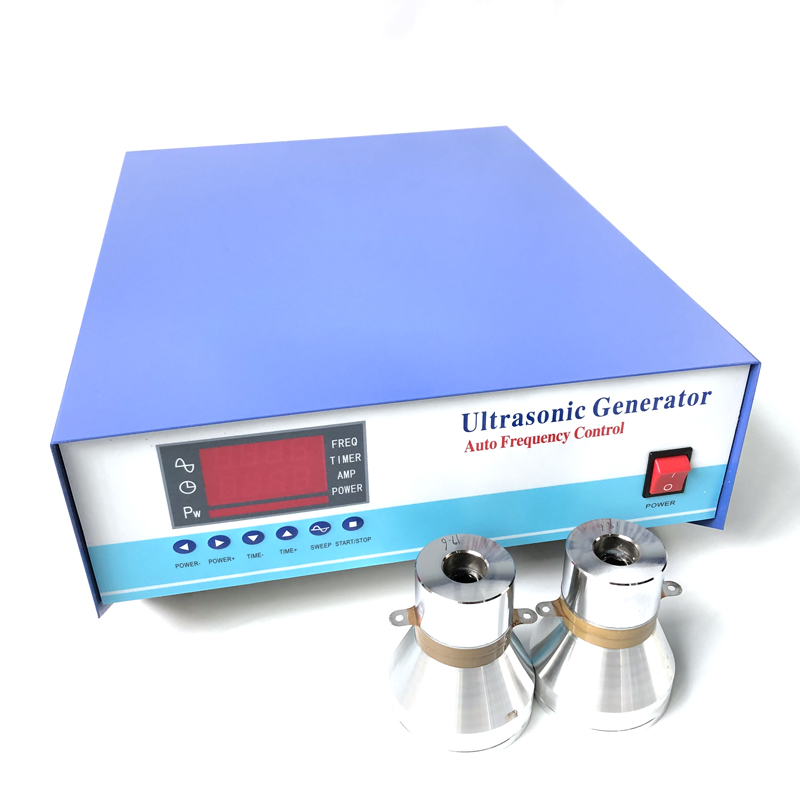

ultrasonic generator with sweep function for cleaning

Dte：2020-11-14 Number of visits：Number

The frequency of 20kHz / 28kHz / 40KHz, that is, the frequency in the range of 20khz-45khz can be adjusted on one computer. 68khz-80khz-120khz and other high-frequency machines, generally need a separate generator to achieve, please consult our company for details.

Large power range:

300w-3000w, a single ultrasonic generator with high power 3000W, can carry 50 60W ultrasonic transducers. In addition to the ultrasonic generator, the company also provides ultrasonic vibration head, ultrasonic vibration head glue, ultrasonic vibration plate and other ultrasonic accessories, and produces ultrasonic cleaning machine, ultrasonic vibration plate, small ultrasonic cleaning machine, ultrasonic maintenance.

Equipment:

1. The debugging is simple: the generator realizes "two steps in place";

2. Ultrasonic uniformity: uniform ultrasonic output of cleaning industry;

3. Ultrasonic density: ultrasonic output of cleaning industry density;

4. The quality is stable: after ten years of testing, the ultrasonic circuit board is upgraded;

5. Service life: ultrasonic generator with long service life at present.

Type	Power（W）	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
PU-GT300	300W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
PU-GT600	600W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
PU-GT900	900W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
PU-GT1000	1000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
PU-GT1200	1200W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
PU-GT1500	1500W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
PU-GT1800	1800W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
PU-GT2000	2000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
PU-GT2400	2400W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
PU-GT3000	3000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	65-80khz
High Frequency	300W-1200W	120-135khz
