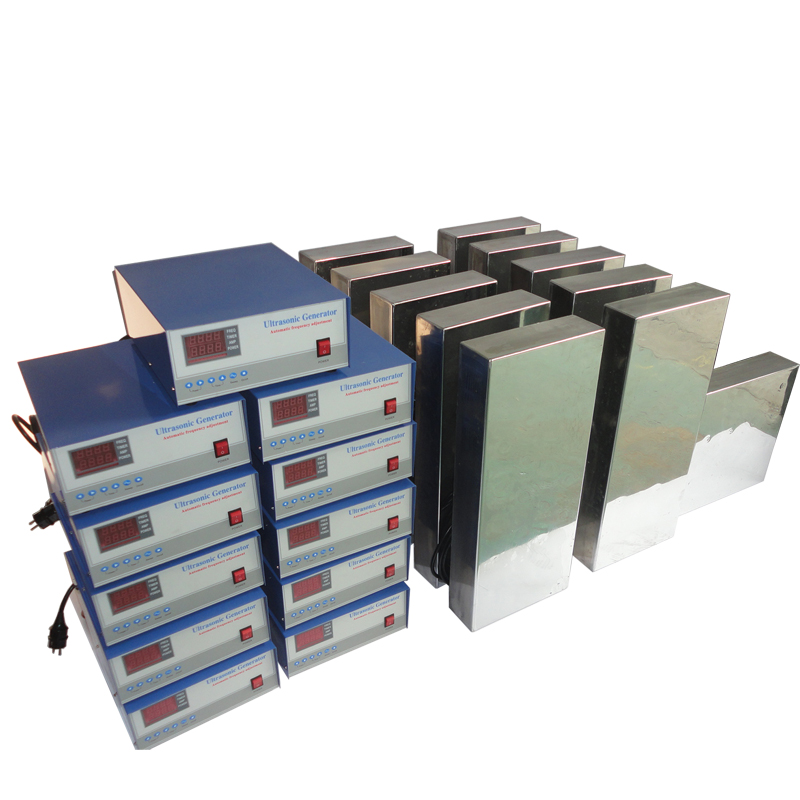

Submersible Ultrasonic Vibration Transducer with generator

Advantages of Submersible Ultrasonic Transducer



1. The cleaning effect is good, the cleanliness is high, and the cleanliness of all workpieces is consistent

2. The cleaning speed is fast and the production efficiency is improved

3. It is safe and reliable without manual contact with the cleaning fluid. It also cleans deep holes, slits and concealed parts of the workpiece

4. No damage to the surface of the workpiece, the place which can not be cleaned by hand, can be solved by ultrasonic wave;

5. Save solvent, heat energy, working site and labor.



The input type ultrasonic vibration plate is an ultrasonic device added on the basis of the existing tank body. It is easy to install and maintain. The vibration plate can be installed at the bottom and side of the tank. When the original vibration plate can not meet the cleaning requirements, it can be used to produce various cleaning machines with different cleaning requirements. It is widely used in electroplating, painting, electrophoresis, painting and other industries The pre-treatment and post-treatment processes of art. My factory has more than 20 years of production and processing experience, specially for you to solve various solutions.

Type	Diamention(mm)	Frequency (Khz)	Power(W)	Ultrasonic Transducer
PU-UITP300W	300*190*100	25,28,33,40,80,130	300	6
PU-UITP600W	360*275*100	25,28,33,40,80,130	600	12
PU-UITP1000W	450*350*100	25,28,33,40,80,130	1000	20
PU-UITP1200W	470*380*100	25,28,33,40,80,130	1200	24
PU-UITP1500W	520*450*100	25,28,33,40,80,130	1500	30
PU-UITP1800W	560*450*100	25,28,33,40,80,130	1800	36
PU-UITP2000W	650*450*100	25,28,33,40,80,130	2000	40
PU-UITP2400W	740*520*100	25,28,33,40,80,130	2400	48
PU-UITP3000W	820*540*100	25,28,33,40,80,130	3000	60
PU-UITP5000W	1200*590*100	25,28,33,40,80,130	5000	100
OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
