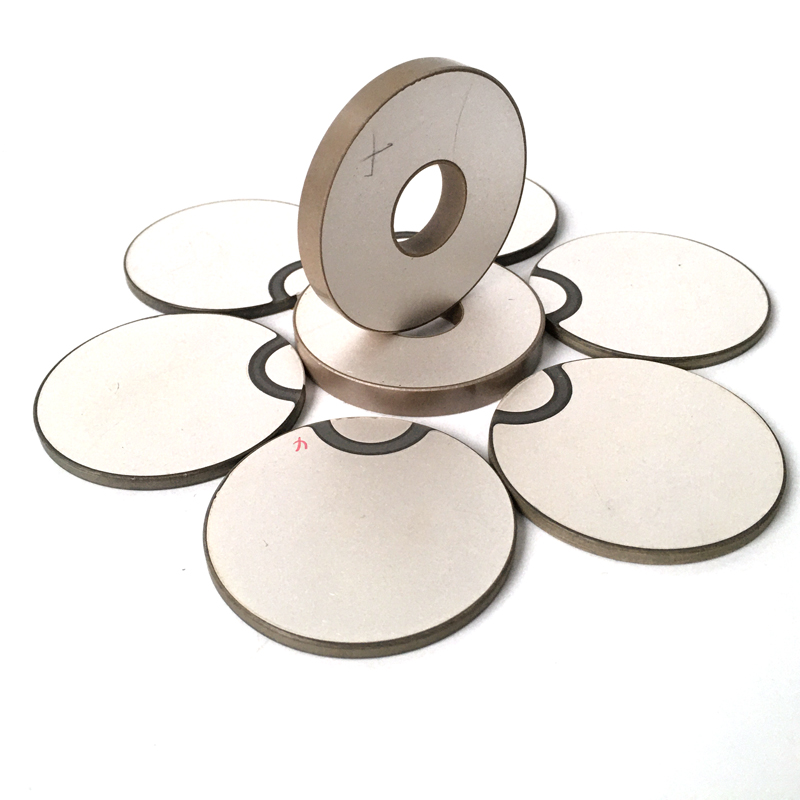

Piezo Disk Vibration Sensor for ultrasonic transducer

Dte：2020-11-06 Number of visits：Number

Piezoelectric ceramic chip is a simple and lightweight electrical device. It has been widely used because of its high sensitivity, no magnetic field spread and overflow, no need of copper wire and magnet, low cost, less power consumption and convenient for mass production. It is suitable for transmitting and receiving ultrasonic wave and infrasonic wave. Large area piezoelectric ceramic chip can also be used to detect pressure and vibration. The working principle is to use the reversibility of piezoelectric effect to apply audio voltage on it to generate sound.

Spec	Dimension (mm)	Thickness frequency (MHz)	Capacitance (pf)	Electromechanical coupling coefficient		Piezoelectric voltage coefficient d33	Courier temperature (℃)
Spec	Dimension (mm)	Thickness frequency (MHz)	Capacitance (pf)	Kp	Kt	Piezoelectric voltage coefficient d33	Courier temperature (℃)
UCE-81-1	Φ8 × 1	2.0MHz±5%	530±10%	0.65	0.43	420×	350
UCE-81-2	Φ8 × 1	2.0MHz±5%	850±10%	0.64	0.44	520×	330
UCE-82	Φ8 × 2	1.0 MHz±5%	265±10%	0.65	0.43	420×	350
UCE-82-1	Φ8 × 2	1.0 MHz±5%	430±10%	0.64	0.44	520×	330
UCE-101	Φ10 × 1	2.0 MHz±5%	840±10%	0.65	0.44	420×	350
UCE-101-1	Φ10 × 1	2.0 MHz±5%	1350±10%	0.64	0.43	520×	330
UCE-102	Φ10 × 2	1.0 MHz±5%	420±10%	0.65	0.44	420×	350
UCE-102-1	Φ10 × 2	1.0 MHz±5%	680±10%	0.65	0.45	520×	330
UCE-151	Φ15 ×1	2.0 MHz±5%	1970±10%	0.65	0.43	420×	350
UCE-151-1	Φ15 × 1	2.0 MHz±5%	3200±10%	0.65	0.45	520×	330
UCE-152	Φ15 × 2	1.0 MHz±5%	980±10%	0.66	0.43	420×	350
UCE-152-1	Φ15 × 2	1.0 MHz±5%	1600±10%	0.65	0.45	520×	330
UCE-161	Φ16×1	2.0 MHz±5%	2200±10%	0.65	0.45	420×	350
UCE-161-1	Φ16×1	2.0 MHz±5%	3600±10%	0.65	0.45	520×	330
UCE-162	Φ16 × 2	1.0 MHz±5%	1850±10%	0.65	0.45	420×	330
UCE-162-1	Φ16 × 2	1.0 MHz±5%	1100±10%	0.65	0.45	420×	350
UCE-201	Φ20×1	2.0 MHz±5%	3560±10%	0.66	0.43	420×	350
UCE-201-1	Φ20×1	2.0 MHz±5%	5800±10%	0.65	0.45	400×	330
UCE-202	Φ20×2	1.0 MHz±5%	1780±10%	0.65	0.43	350×	350
UCE-202-1	Φ20×2	1.0 MHz±5%	2900±10%	0.65	0.45	400×	330
UCE-251	Φ25 × 1	2.0 MHz±5%	4600±10%	0.66	0.43	350×	350
UCE-251-1	Φ25 × 1	2.0 MHz±5%	7500±10%	0.65	0.45	400×	330
UCE-252	Φ25 × 2	1.0 MHz±5%	2300±10%	0.65	0.43	350×	350
UCE-252-1	Φ25 × 2	1.0 MHz±5%	3700±10%	0.65	0.45	400×	330
UCE-402	Φ40 × 2	1.0 MHz±5%	7200±10%	0.65	0.45	350×	350
