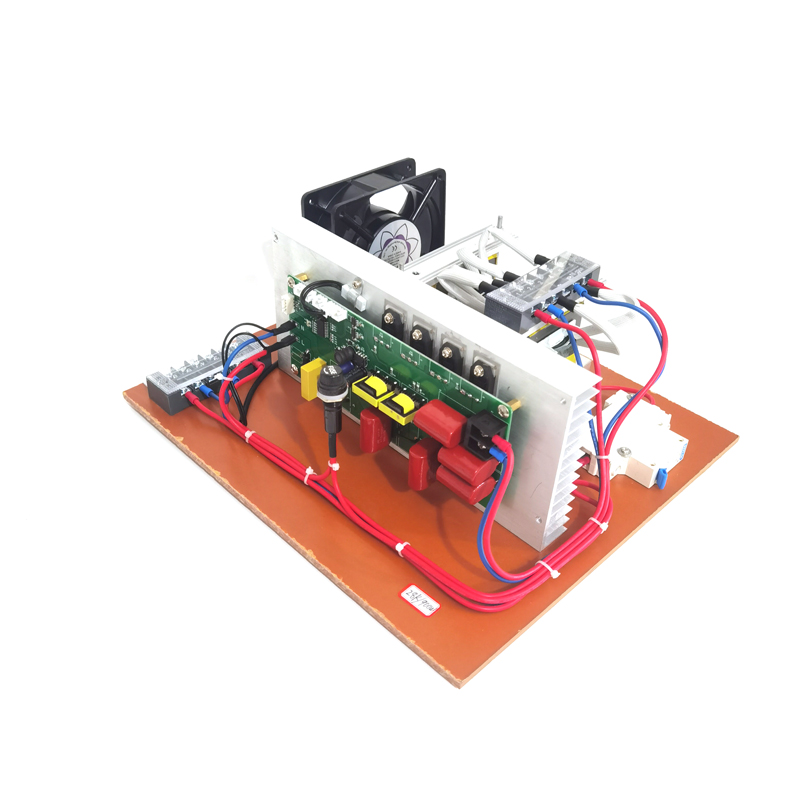

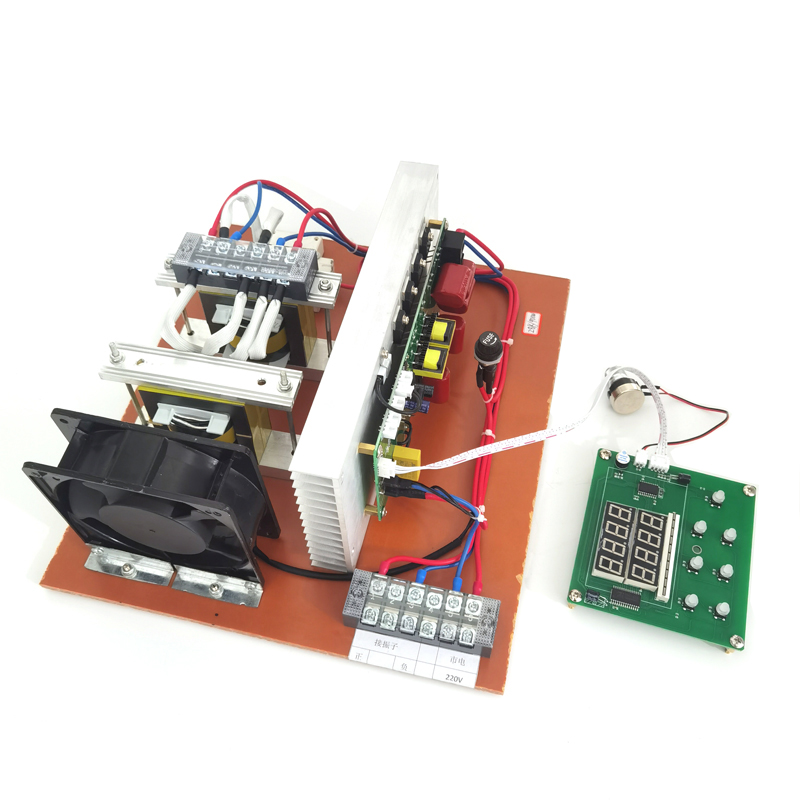

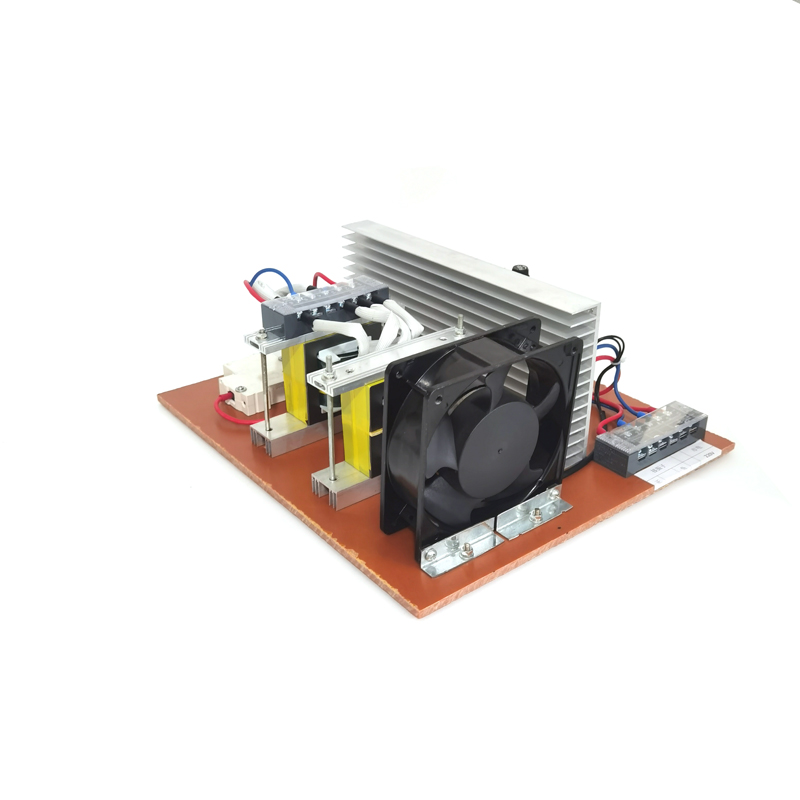

28KHZ/40KHZ ultrasonic generator driver PCB circuit
Ultrasonic generator is a kind of conversion device that converts electric energy into ultrasonic energy and provides energy to ultrasonic transducer, also known as ultrasonic power supply. The series of ultrasonic generators produced by ou...
Ultrasonic generator is a kind of conversion device that converts electric energy into ultrasonic energy and provides energy to ultrasonic transducer, also known as ultrasonic power supply. The series of ultrasonic generators produced by our company are based on the technology of well-known experts and professors at home and abroad, and are assembled with imported high-power devices.
Ultrasonic generator is widely used in ultrasonic cleaning, welding, drilling, polishing, homogenization, descaling and other fields, the products sell well all over the country and are well received by users.
Product features:
The power output adopts IGBT - Ⅳ inverter technology (IGBT inverter technology: it is the most advanced and popular power supply technology in the world, which has the advantages of small volume, light weight, high conversion efficiency, low energy consumption, good quality and long service life), with large output power and excellent effect.
The ultrasonic power is adjustable, the adjustable range is 0-maximum, and the power current meter indicates.
Equipped with remote control interface, it is more convenient for users.
The power supply has reasonable structure design, easy ventilation and heat dissipation, and has the function of over-current, over-voltage and overheating protection, and good continuous operation reliability.
| Type | Power（W） | Frequency (KHz) |
| PU-DGPCB300W | 300 |
20khz,25khz,28khz,33khz,40khz Frequency is adjustable |
| PU-DGPCB600W | 600 |
20khz,25khz,28khz,33khz,40khz Frequency is adjustable |
| PU-DGPCB900W | 900 |
20khz,25khz,28khz,33khz,40khz Frequency is adjustable |
| PU-DGPCB1000W | 1000 |
20khz,25khz,28khz,33khz,40khz Frequency is adjustable |
| PU-DGPCB1200W | 1200 |
20khz,25khz,28khz,33khz,40khz Frequency is adjustable |
| UCE-HPPCB1500W | 1500 |
20khz,25khz,28khz,33khz,40khz Frequency is adjustable |
| PU-DGPCB1800W | 1800 |
20khz,25khz,28khz,33khz,40khz Frequency is adjustable |
| PU-DGPCB2000W | 2000 |
20khz,25khz,28khz,33khz,40khz Frequency is adjustable |
| PU-DGPCB2400W | 2400 |
20khz,25khz,28khz,33khz,40khz Frequency is adjustable |
| PU-DGPCB3000W | 3000 |
20khz,25khz,28khz,33khz,40khz Frequency is adjustable |
