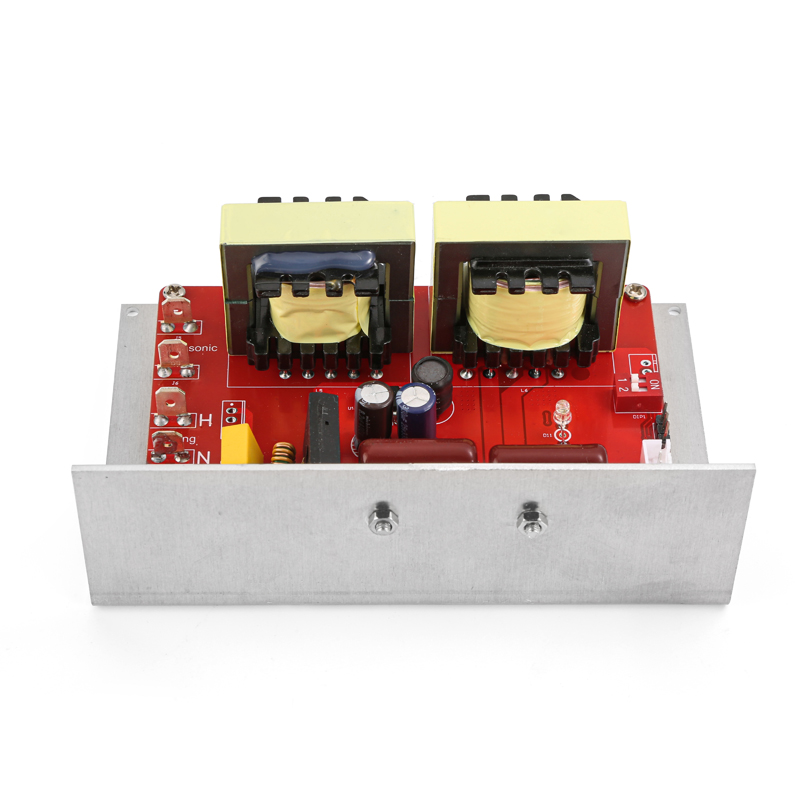

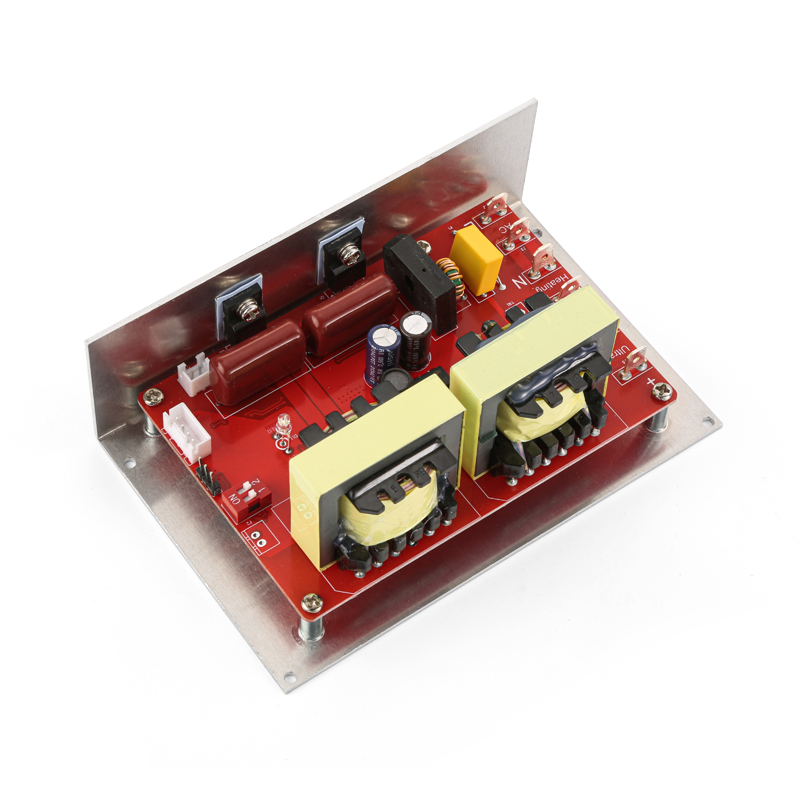

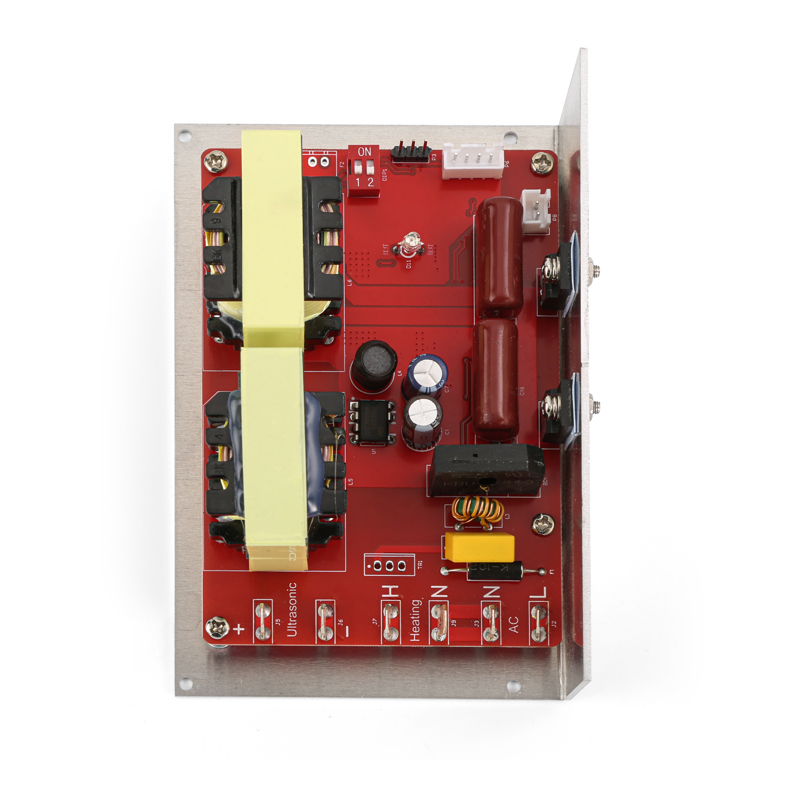

28khz/40khz/100W Ultrasonic Transducer Driver Board
At the end of 2018, I can adjust the operation cost of the generator to adapt to the domestic market. The frequency can be adjusted from 20kHz to 40KHz, and the power can be 50w-180w. Product features: 1. IGBT power output components are al...
At the end of 2018, I can adjust the operation cost of the generator to adapt to the domestic market. The frequency can be adjusted from 20kHz to 40KHz, and the power can be 50w-180w.
Product features:
1. IGBT power output components are all imported devices, which have the advantages of small size, high power and fast response;
2. Power tube: adopt 90a / 1200V imported tube from Toshiba of Japan to eliminate the possibility of burning tube;
3. The output power is up to 93% and the ultrasonic cavitation density is greatly increased;
4. The output current is sine wave, which can prolong the service life of transducer and generator;
5. Wide range sweep frequency: 23khz-40khz adjustable, suitable for all kinds of transducers;
6. Adjustable power function;
| Model | Power（W） | Frequency (khz) | Operating voltage |
Maximum output current |
| PU-XLB50W | 50 | 25khz,28khz,33khz,40khz | AC110V/220V | 0.33A |
| PU-XLB100W | 100 | 25khz,28khz,33khz,40khz | AC110V/220V | 0.45A |
| PU-XLB150W | 150 | 25khz,28khz,33khz,40khz | AC110V/220V | 0.65A |
