Ultrasonic Sound Pressure Meter Ultrasonic Power Density Ultrasound Intensity Measuring Instrument

Features of the product:







Instantaneous value of cleaning power of ultrasonic cleaning machine can be measured at any time



Unit: W/cm2



It can also measure the average value of the cleaning power of the ultrasonic cleaning machine



When measuring the average value, the number of samples is 0-40,



It is simple and convenient to operate with four operation keys



Small portable design, body weight is about 620g



The measured value of sound pressure can be directly displayed on the LCD screen



It can display the upper and lower limits of the measured value, and indicate whether there is data beyond the limited range, so as to judge whether the cleaning power of the ultrasonic cleaner is normal.



Technical specifications of acoustic pressure gauge:







Applicable frequency range: 5K-100KHz



Measured sound pressure range: 0-200W/cm2



Determination accuracy: 0.01W/cm2



Response time: 6ms



Test rod size: 9.2mm in diameter and 50mm-60mm in length



Test rod material: stainless steel



Connecting line length: 1.5m



Power supply: No. 7 rechargeable battery (2 batteries)



Battery life: 150000 hours

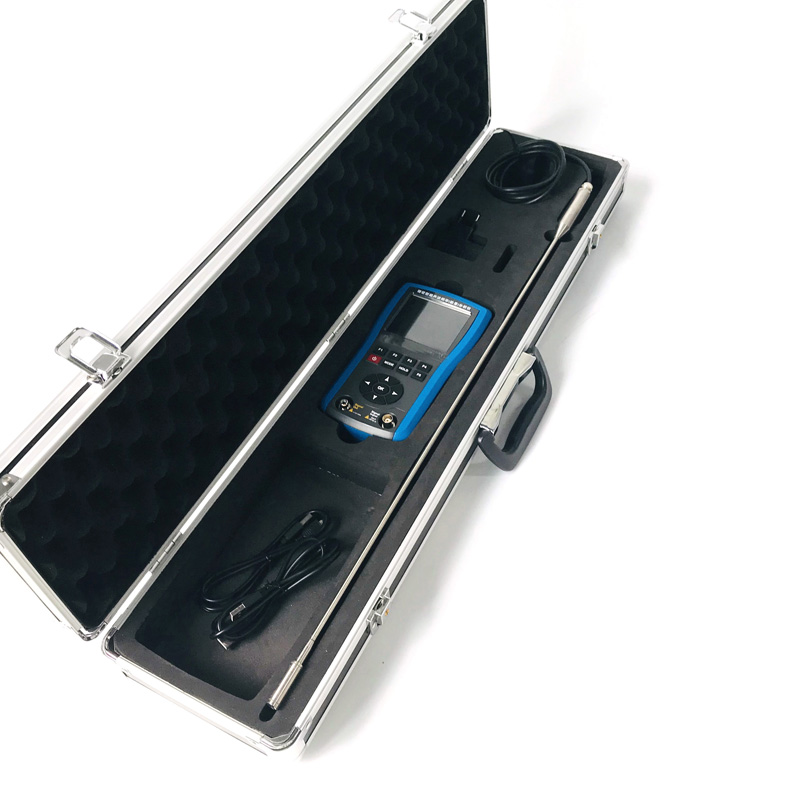

Accessories: 2 No. 7 rechargeable batteries, battery charger; Carrying case, operating instructions
